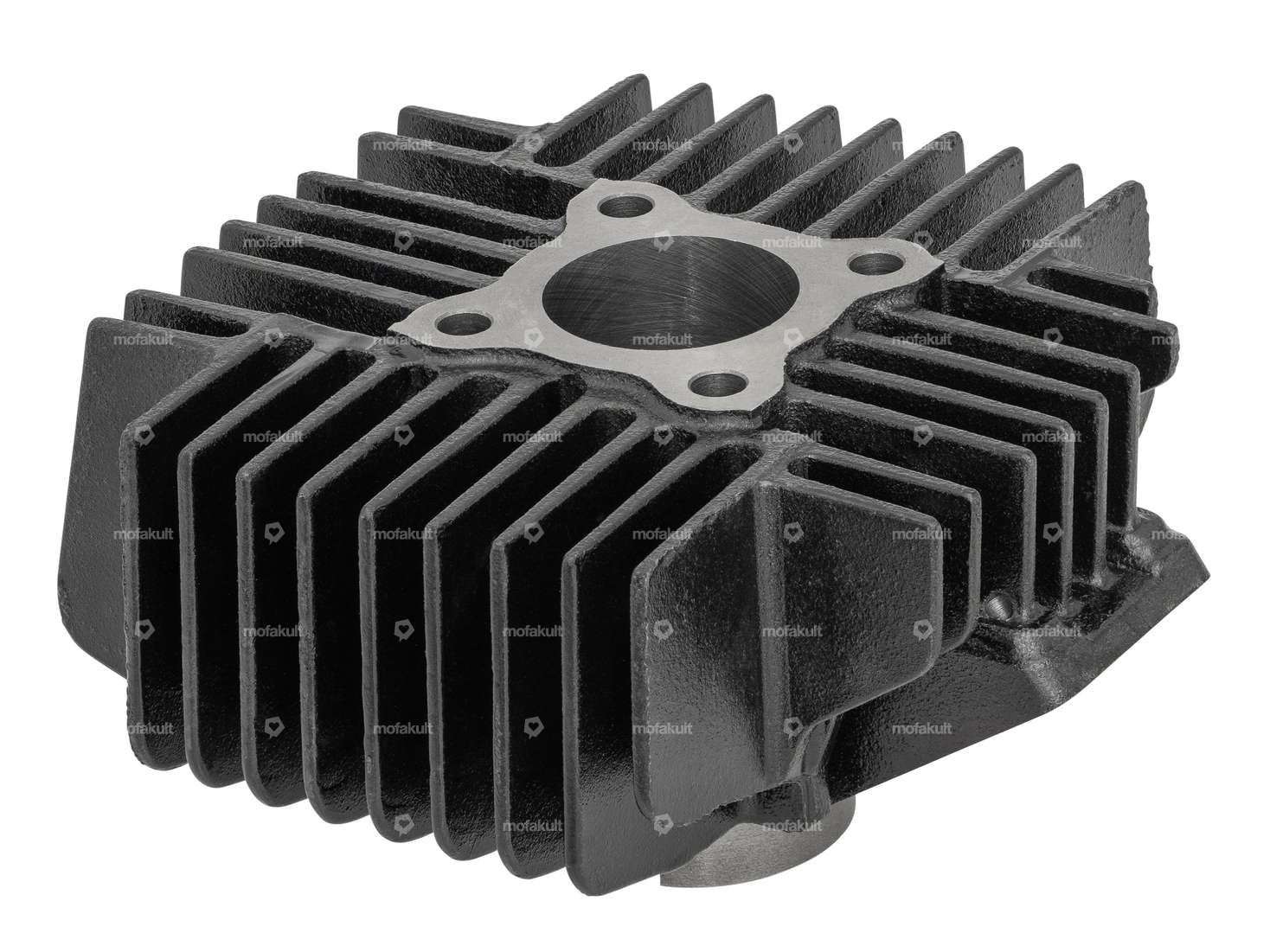

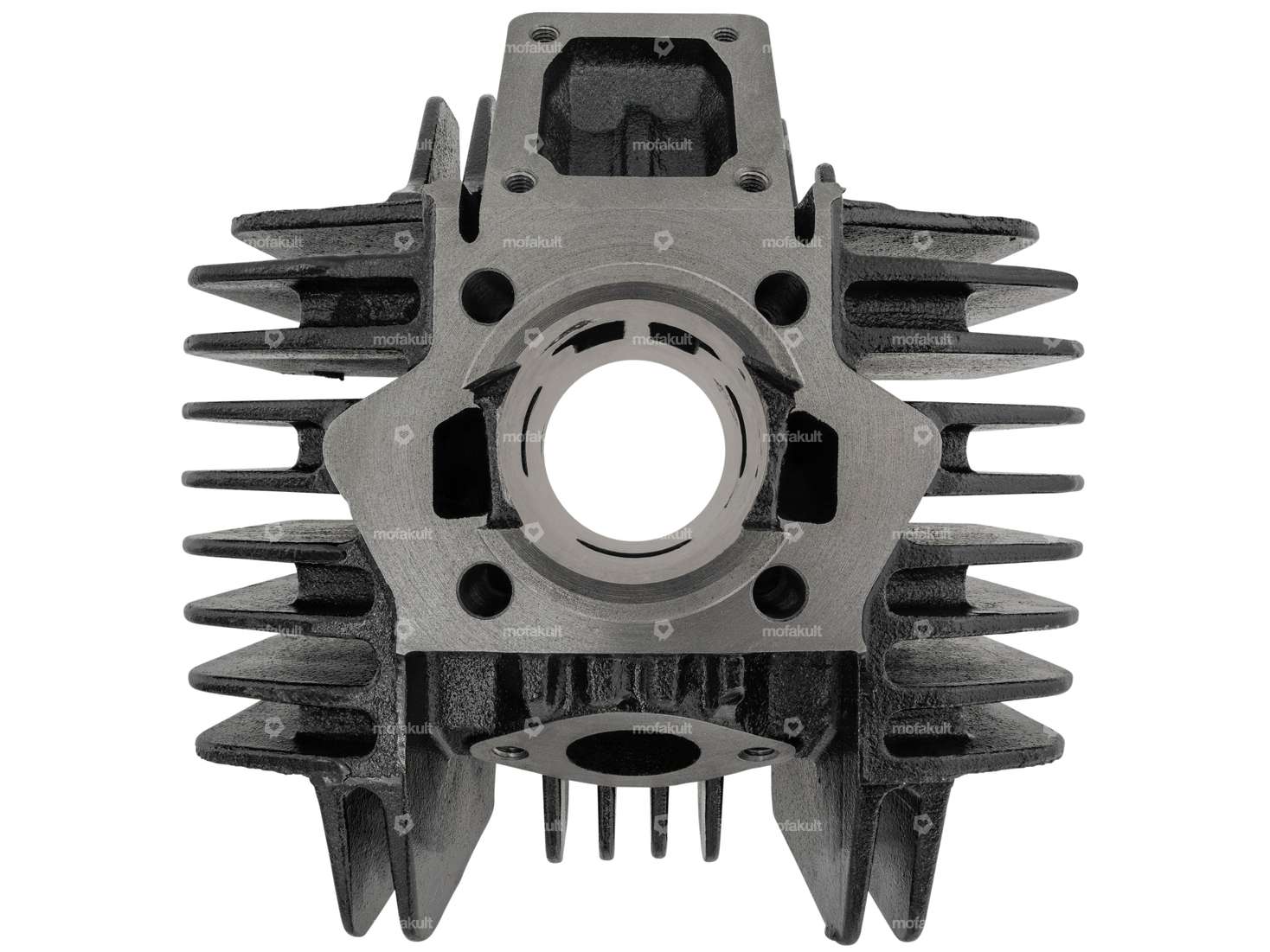

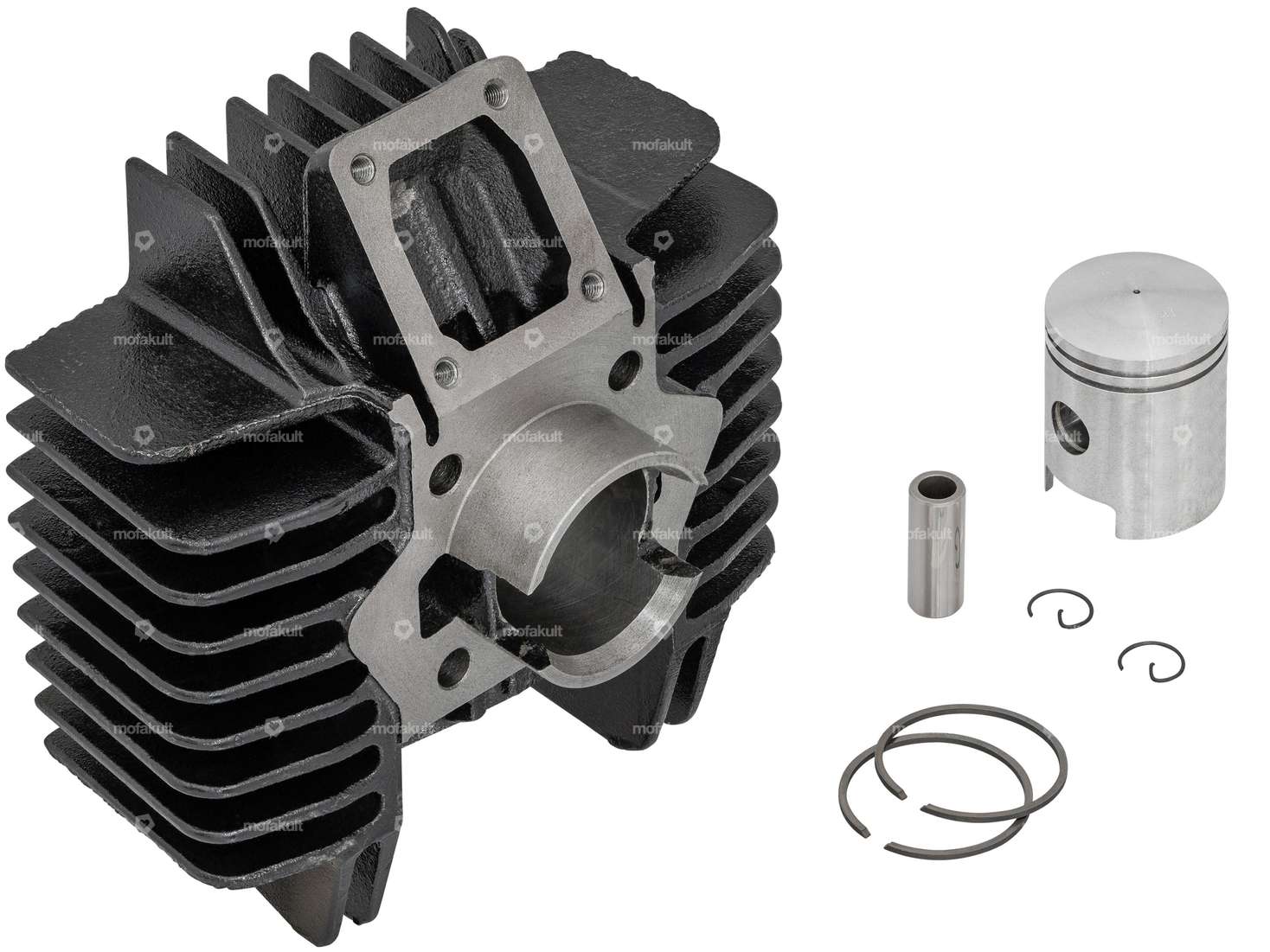

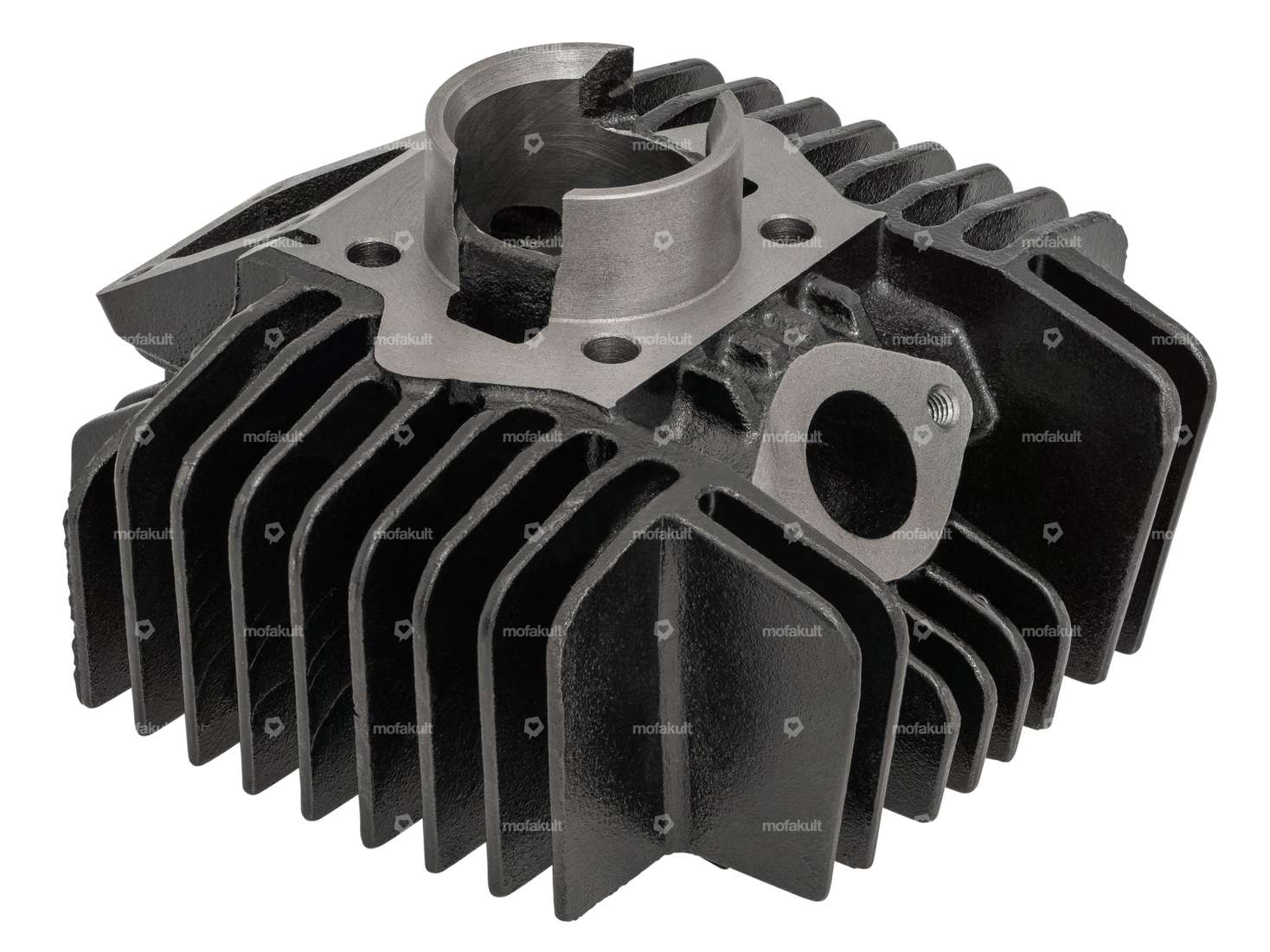

Cylinder made of solid gray cast iron including piston and accessories, suitable for Tomos Sprint, Quadro, FunSport, Classic mopeds / mopeds.
Dimensions of the cylinder set:
Distance between stud bolts: 44 x 44 mm
Bore: 38 mm
Ø piston pin: 12 mm (Axe 12)
Distance between exhaust stud bolts: 41 mm
Exhaust flange angle: inclined (inclined exhaust)
Note: This is the 30 km/h variant without additional piston window. You will need to mill these yourself if required. We also recommend that you check the edges in the cylinder and deburr them slightly if necessary, as they are somewhat sharp-edged in places.
Alternative cylinders and the matching gasket can be found in the accessories section.
Branded product from the manufacturer DMP.
Details
| Manufacturer | DMP |
| Material | Gray cast iron |
| Displacement | 50 ccm |
| Surface | varnished |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 38 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Area of application | Standard |
| Ø piston pin (B) | 12 mm |
| Outlet type | slanted |
| Hole spacing outlet | 42 mm |
| Number of fixing points | 4 pcs |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | Yes |
| Tomos OEM number | 229402 |
Suitable for the following models
| Tomos |
