High-quality gasket set with flat gaskets suitable for your moped / moped with Sachs 504, 505 and 535 engine.
The clean and precisely fitting gaskets can be used for Hercules Prima M, 2, 3, 4, 5 and Optima models, among others.
The gasket set consists of the following paper gaskets and the crush ring:
1 x cylinder base gasket 0.3 mm (A4277)
1 x clutch cover gasket 1.0 mm (A4278)
2 x intake gasket 1.0 mm (A4279)
1x copper ring 34 x 28 x 2.6
A quality product made in Italy.
Original Pony spare part number: A4277, A4278, A4279
Details
| Thickness | 0.3 mm, 1 mm, 2.6 mm |
| Manufacturer | Made in Italy |
| Material | Sealing carton, Copper, Sealing paper |
| Hole spacing inlet | 32 mm |
| Ø outlet inside | 28 mm |
| Hole pattern [mm] | 81.5 x 51 mm / 58 x 58 mm |
| Number of components | 5 pcs |
| Pony OEM number | A4277, A4278, A4279 |
Suitable for the following models
| Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG), 2B (HG) 508 - 1 A 535 |
| Hercules | Prima - 2, 3, 4, 5, Optima |
| Rixe |
Accessories & related products
GPO 6V ignition coil | Hercules Optima 3S / Prima 3, 4, 5, SL
Color: black · Manufacturer: GPO · Place of use: External (outside the ignition) · Ø cable holder: 7.8 mm · Mounting type: Screws · Ø mounting hole: 5.2 mm · Number of fixing points: 4 pcs · Area of application: Original · Area of application: Standard · Hole spacing: 53 mm
EUR 56.60
Moped fans like you also bought:
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Manufacturer: Made in Germany · Ø Stranded wire: 1.25 mm · Ø nipple: 3 mm · Nipple length: 5 mm · Material: Steel · Area of application: Standard · Surface: galvanized (blue) · Nipple shape: Cylinder · Cable length: 2200 mm · Number of components: 1 pcs
EUR 3.30
BING O-ring Bing SRE & 85, Ø 20 mm
Manufacturer: BING · Material: Rubber · Surface: raw · Color: black · Number of components: 1 pcs · Ø outside: 20 mm · Ø inside: 17.2 mm · Cord thickness: 1.4 mm · Place of use: Carburetor · Area of application: Standard · Pony OEM number: A4281 · Sachs OEM no.: 0250 160 101
EUR 3.40
Oil seal NBR 15/32/5.5 A Main shaft | Sachs 504, 505, 535 (A4216)
Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Width: 5.5 mm · Ø outside: 32 mm · Temperature resistance (min.): -30 - 100 °C
EUR 10.60
Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)
Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 5.5 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A5602 · Sachs OEM number: 0230 111 100
EUR 9.40
Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)
Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Ø inside: 15 mm · Ø outside: 35 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C
EUR 10.60

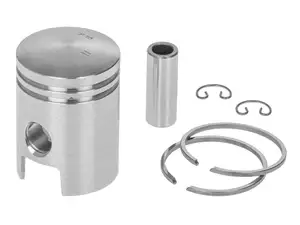

Meteor piston 37.98 mm type B | Sachs 504
