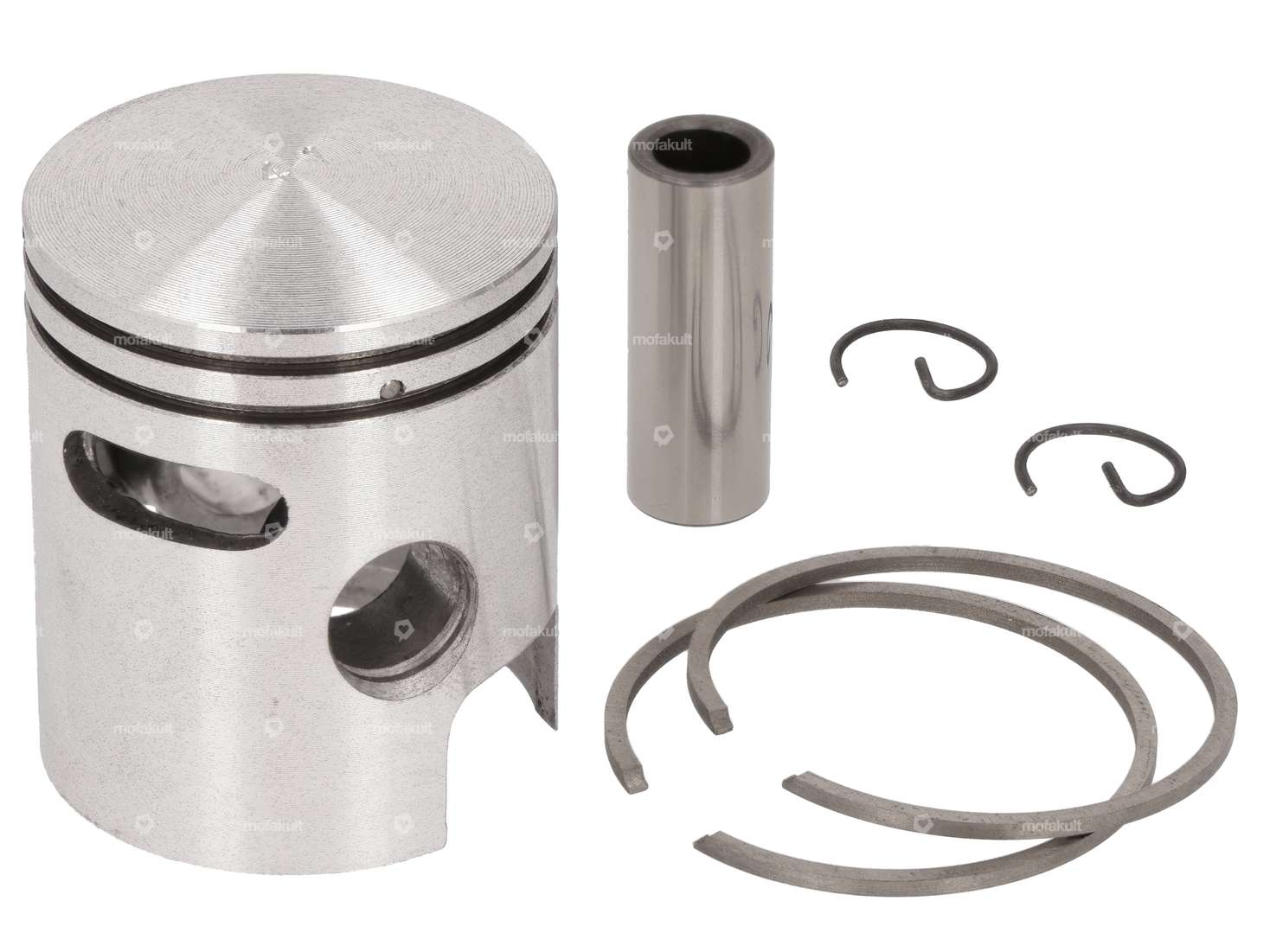

41 mm piston kit with two 1.5 mm rectangular piston rings with side protection (FS) for your Piaggio Ciao, Si, Bravo, Boxer and Grillo moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Manufacturer | GOL |
| Ø outside piston (A) | 40.94 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 26.7 mm |
| Curvature (D) | 2.8 mm |
| Total piston height (E) | 50.8 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 41 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Piston weight | 78 g |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo Gilera CBA Gilera Citta |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 23.50

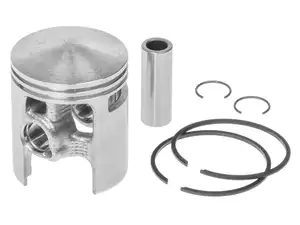

Malossi piston 43 mm (12 mm KoBo) old version | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Nominal diameter: 43 mm · Ø outside piston (A): 42.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.1 mm · Curvature (D): 4.7 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 90 g
EUR 88.50

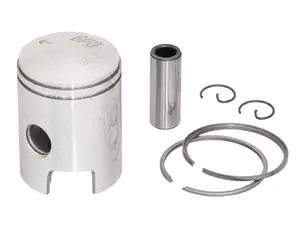

GPO piston 38.2 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: GPO · Nominal diameter: 38.2 mm · Ø outside piston (A): 38.16 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston weight: 75 g
EUR 35.30

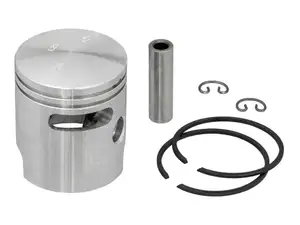

Meteor piston 43.0 mm Polini cylinder (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
