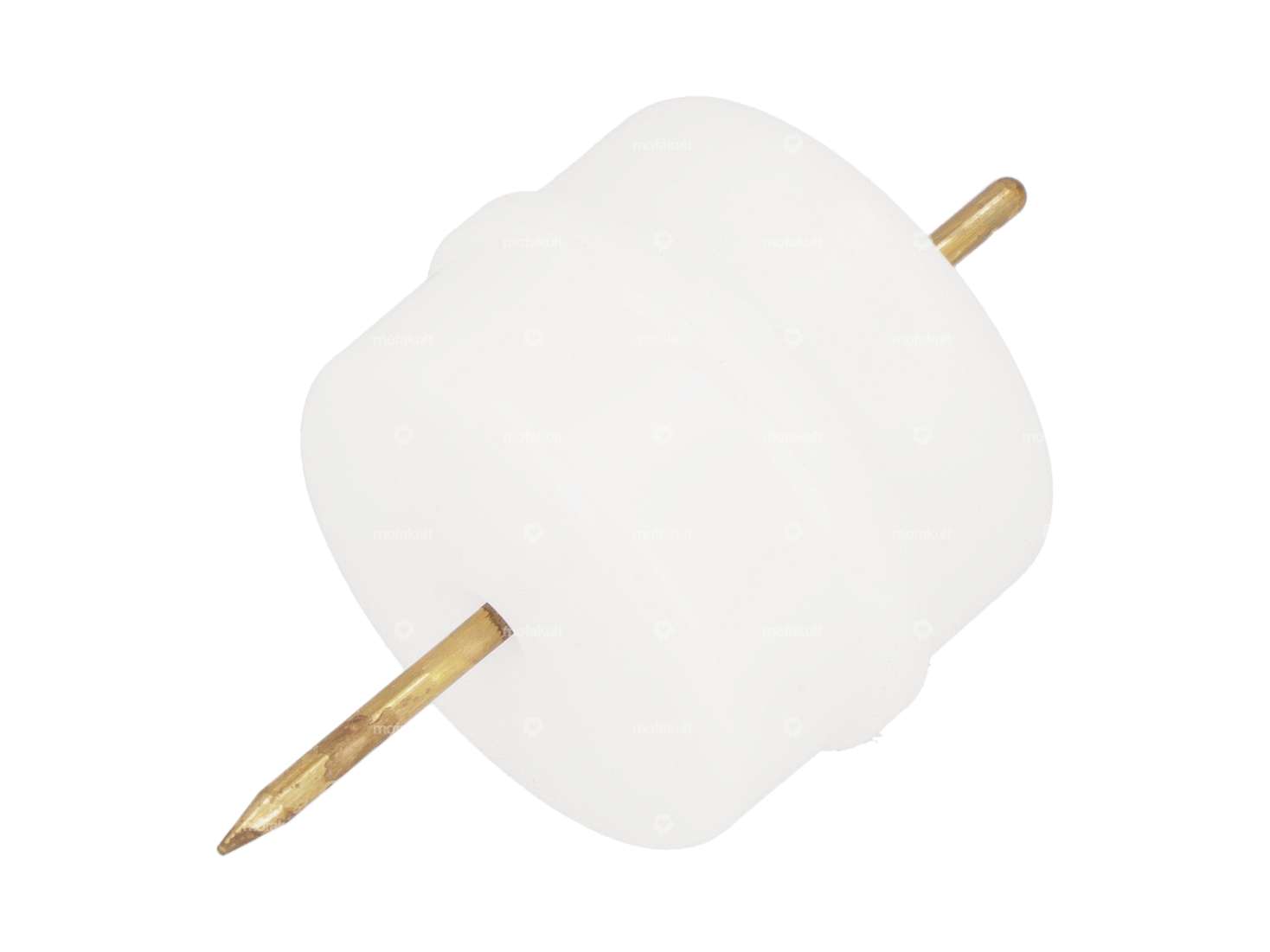

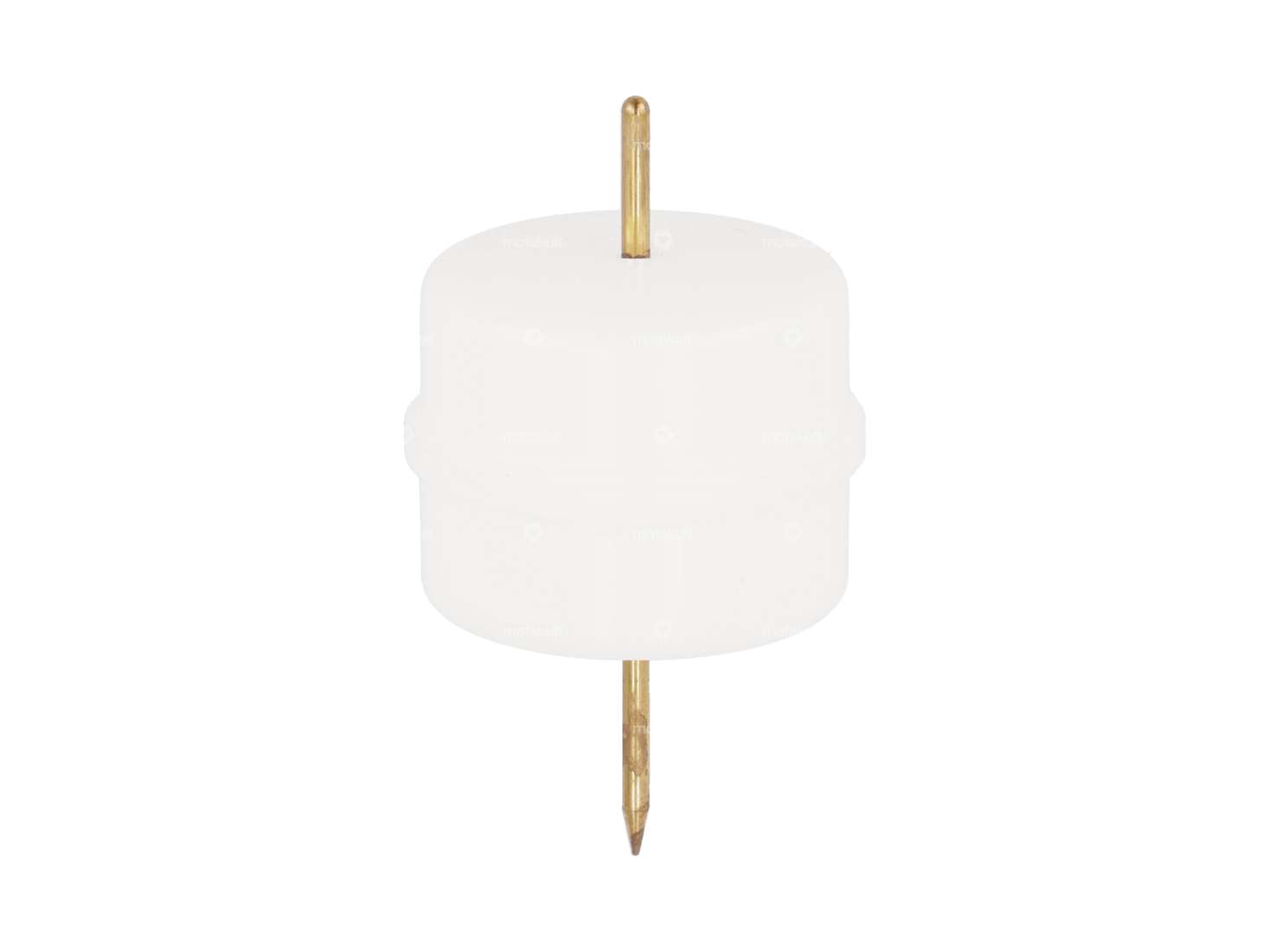

Gurtner carburetor float AR | MBK, Motobécane (AV10, AV7)

Gurtner carburetor AR 1/13 with air filter original | MBK / Motobécane 51 (AV10)

Nominal diameter: 13 mm · Manufacturer: Gurtner · Material: Aluminum · Material: Plastic · Thread type: Centrifugal clutch · Area of application: Original · Area of application: Standard · Total length: 75 mm · Mounting type: Plug connection clamped · Ø Internal connection: 19 mm · Width: 101 mm · Nozzle size: 58 · Height: 118 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50 mm · Ø fuel hose connection: 6 mm · Choke control: Cable choke

Gurtner carburetor AR 2/10 original | MBK / Motobécane 4/85 (AV71)

Nominal diameter: 10 mm · Manufacturer: Gurtner · Material: Aluminum · Thread type: Centrifugal clutch · Area of application: Original · Area of application: Standard · Total length: 50 mm · Mounting type: Plug connection clamped · Ø Internal connection: 16 mm · Width: 80 mm · Ø without reducing sleeve: 19 mm · Nozzle size: 52 · Height: 101 mm · Ø Inside entrance: 10 mm · Ø Output inside: 10 mm · Ø fuel hose connection: 6 mm · Choke control: Cable choke

Gurtner carburetor idle screw D12G

Material: Steel · Thread type: Starter clutch · Surface: galvanized (blue) · Total length: 21 mm · Carburetor type: Gurtner DG · Thread type: M5x0.8 (standard thread)

Gurtner gasket carburetor float chamber AR | MBK, Motobécane

Manufacturer: Gurtner · Material: Sealing paper · Thread type: Multi-plate clutch · Thickness: 0.4 mm

Gurtner fuel filter carburetor AR1 | MBK, Motobécane 51

Manufacturer: Gurtner · Material: Plastic · Color: white · Total length: 12.4 mm · Filter type: Plastic net · Ø inside: 11.3 mm · Ø outside: 14 mm · Ø outside: 18.7 mm

Gurtner fuel filter carburetor AR2 / DG | Peugeot 102, 103, MBK, Motobécane

Manufacturer: Gurtner · Material: Plastic · Thread type: Starter clutch · Color: white · Total length: 29 mm · Carburetor type: Gurtner AR · Carburetor type: Gurtner DG · Ø outside: 8 mm

Gurtner spring throttle slide carburetor AR | MBK, Motobécane (AV7, AV10)

Spring design: Pressure spring · Ø wire: 0.8 mm · Manufacturer: Gurtner · Number of components: 1 pcs · Material: Spring steel · Area of application: Original · Area of application: Standard · Total length: 33.5 mm · Carburetor type: Gurtner AR · Ø inside: 8 mm · Ø outside: 9.5 mm

Gurtner gasket fuel connection carburetor AR1 sealing paper | MBK, Motobécane (AV10)

Manufacturer: Gurtner · Material: Sealing paper · Thread type: Multi-plate clutch · Total length: 38 mm · Carburetor type: Gurtner AR · Width: 28.5 mm · Thickness: 0.4 mm · Ø inside: 24.5 mm

Gurtner nozzle #50 AR2 | MBK, Motobécane (AV7)

Manufacturer: Gurtner · Material: Brass · Thread type: Clutch actuation · Quantity: 1 pcs · Total length: 22 mm · Carburetor type: Gurtner AR · Drive: External hexagon · Nozzle type: Main nozzle · Drive: Slot · Nozzle size: 50 · Thread length: 5 mm · Width across flats SW: 8 mm · Nozzle thread: M7x1 (standard thread)
