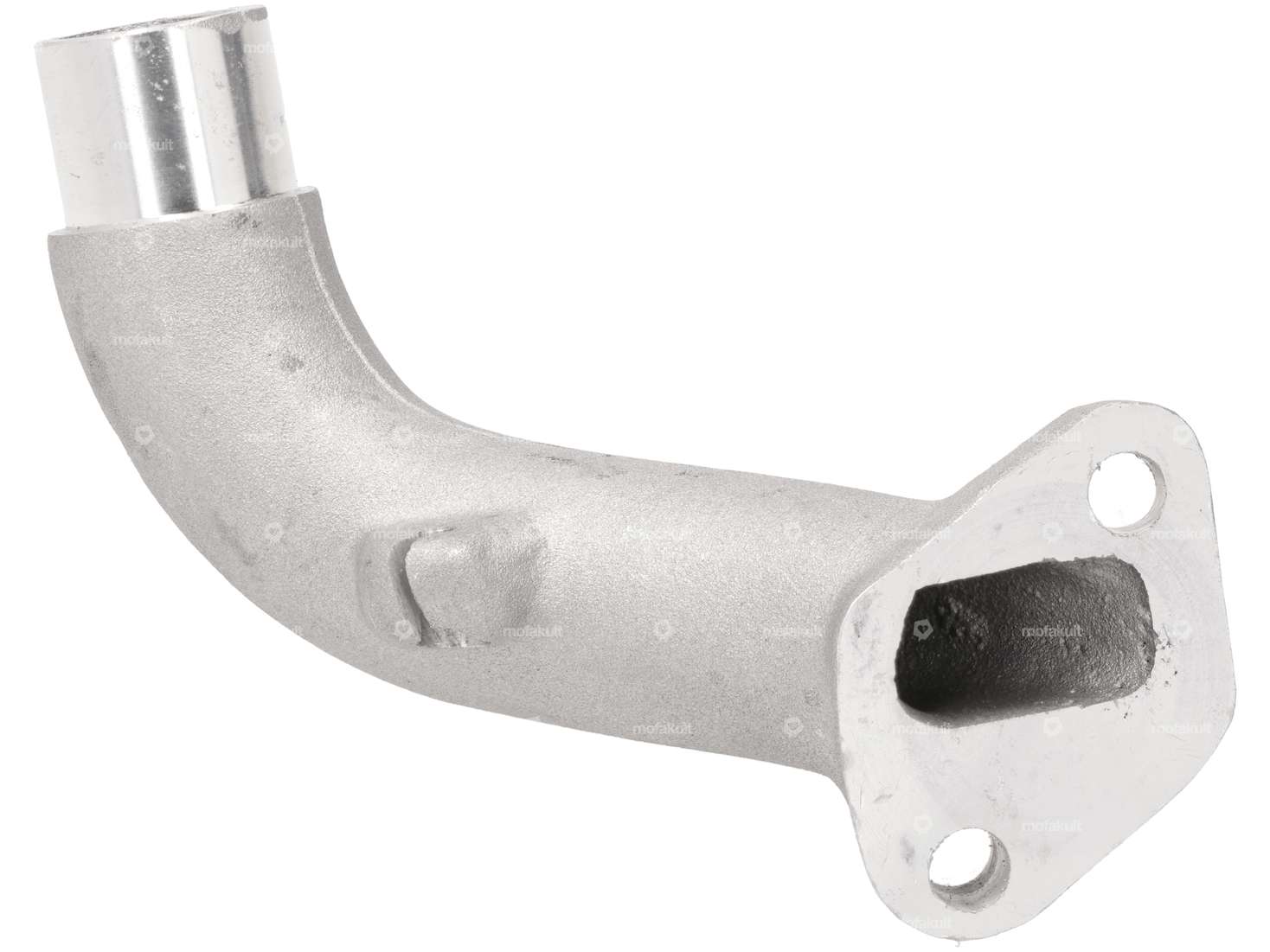

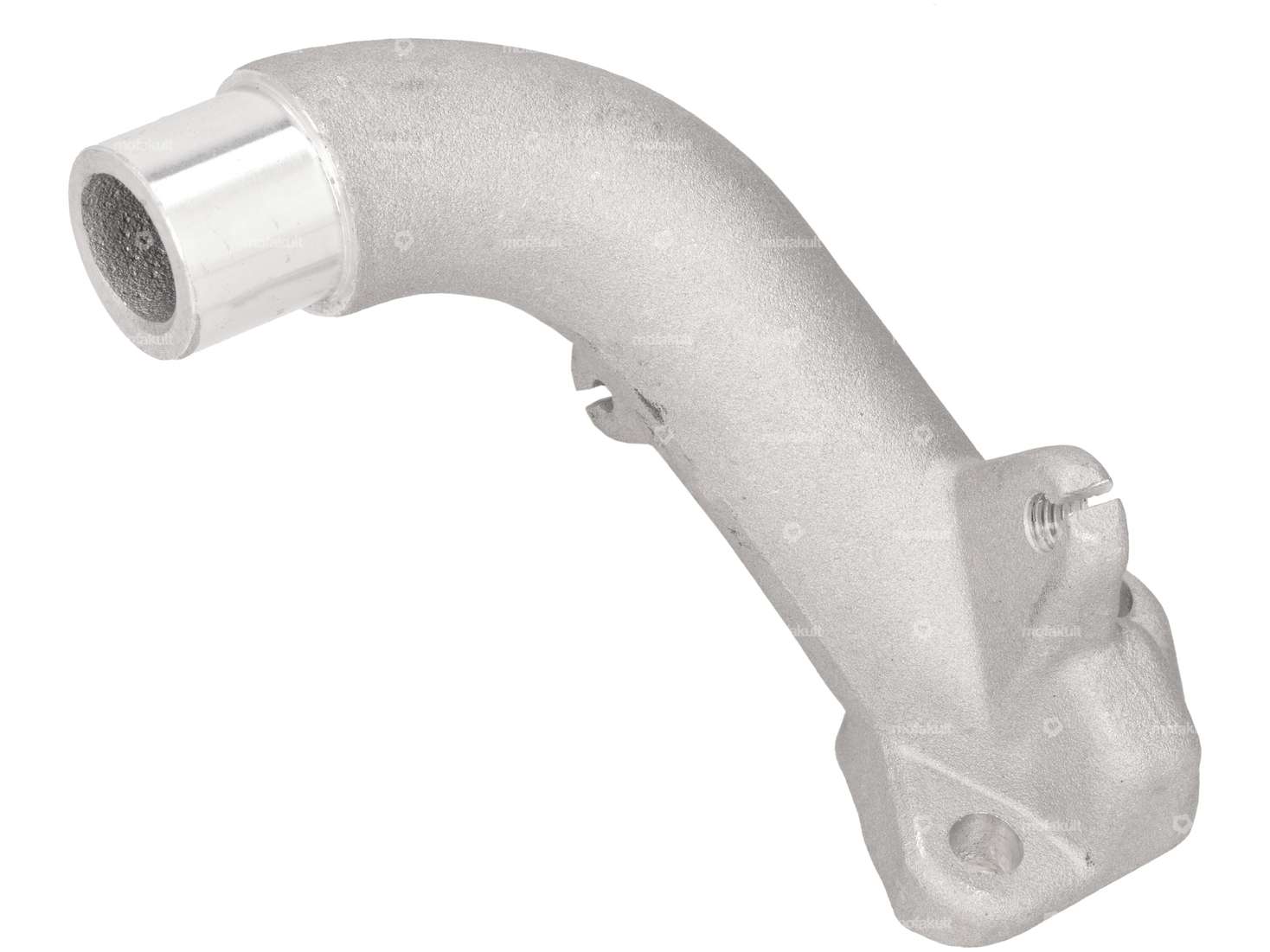

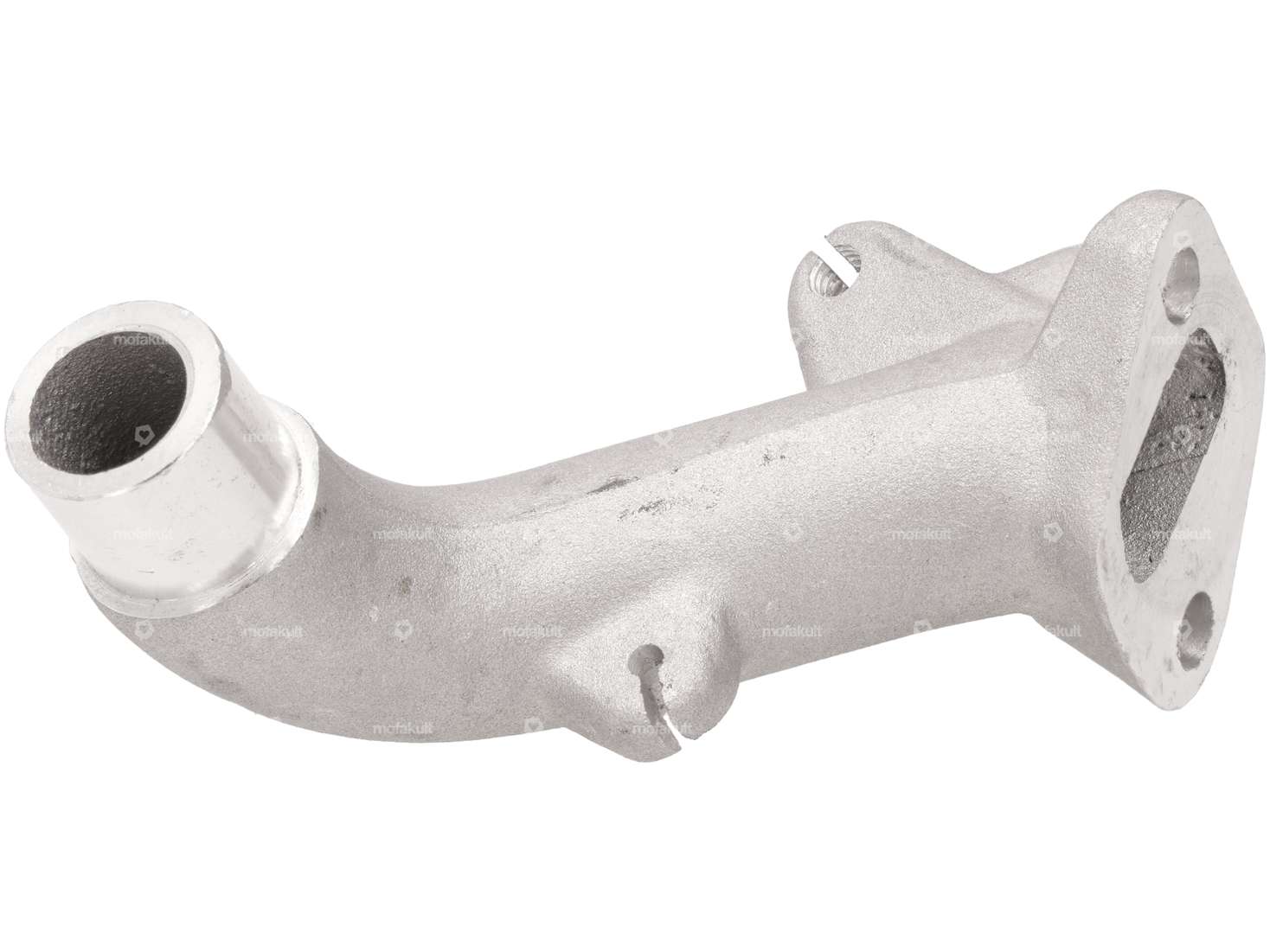

Intake manifold 14 mm aluminum angled | Sachs 504, 505

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9 · Thread type: M6x1 (standard thread)

swiing® revival neck nut M6 galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Neck nut · Thread type: M6x1 (standard thread) · Drive: External hexagon · Height: 16 mm · Width across flats SW: 10 mm

Athena intake manifold 15mm straight | Sachs 504, 505

Manufacturer: Athena · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Tuning

Airsal 14 mm intake manifold angled | Sachs 504, 505

Manufacturer: Airsal · Material: Aluminum · Ø inside: 13.6 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 31 mm · Number of fixing points: 2 pcs · Height flange center hole: 56 mm · Area of application: Tuning

Airsal gasket set 43.5 mm | Sachs 504, 505

Manufacturer: Airsal · Number of components: 3 pcs · Thickness: 0.5 mm · Ø cylinder: 43.5 mm · Area of application: Tuning

Flange intake manifold CNC | Sachs 504, 505, 535

Material: Aluminum · Mounting type: Screws · Hole spacing inlet: 30 mm · Hole pattern [mm]: 23 x 11 · Number of fixing points: 2 pcs · Total height: 12.8 mm · Area of application: Tuning

Athena intake manifold 15mm aluminum angled | Sachs 504, 505

Manufacturer: Athena · Material: Aluminum · Ø inside: 14.3 mm · Ø External connection: 20 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Tuning

Spring washer M6 (6.2x11.8x1.6) galvanized

Material: Spring steel · Area of application: Standard · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Thickness: 1.8 mm · Ø inside: 6.4 mm · Ø outside: 11.4 mm · Thread size: M6

GPO intake manifold 13 mm | Sachs 504, 505

Material: Aluminum · Manufacturer: GPO · Area of application: Tuning · Ø inside: 13 mm · Mounting type: Stud bolts & nuts · Ø External connection: 20 mm · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Height flange center hole: 60 mm · Total height: 70 mm · Sachs OEM no.: 0267 114 201

HPI racing ignition 12V with light 60W

Manufacturer: HPI · Material: Aluminum · Material: Steel · Tension: 12 V · Light coil voltage: 12 V · Performance: 60 W · Direction of rotation: left · Direction of rotation: right · Ø mounting plate: 90 mm · Ø Internal flywheel: 61.5 mm · Ø Flywheel outside: 71.5 mm · Ø cable: 7 mm · Mounting type: Screws · Number of fixing points: 6 pcs · Weight: 340 g · Area of application: Tuning

NGK B8ES spark plug long thread

Manufacturer: NGK · Candle designation: B8ES · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats SW: 21 mm · Thread type: MF14x1.25 (fine pitch thread)

Bing 85/12/101 carburetor (replica) | Sachs 504, 505, 508, 535

Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: 85 · Nominal diameter: 12 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Air filter connection thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: without choke · Nozzle thread: M4x0.7 (standard thread) · Nozzle size: 52 · Mounting type: Plug connection clamped · Total length: 48 mm · Width: 50 mm · Height: 100 mm · Area of application: Standard

NGK B9ES spark plug long thread

Manufacturer: NGK · Candle designation: B9ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 21 mm · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Area of application: Original · Area of application: Standard

swiing® ingenious 17 mm SRF carburetor tuning camouflaged | Puch Maxi, Supermaxi, X30 NS / NL

Width: 47 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Nominal diameter: 17 mm · Carburetor type: SRE · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 74 · Ø Inside entrance: 17 mm · Ø Internal connection: 23 mm · Total length: 65 mm · Ø Output inside: 17.1 mm · Height: 89 mm · Height: 109 mm · Ø Air filter connection: 27.5 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 5 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle block: 2.2 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

Bing 85/13/101 carburetor (replica) | Sachs 504, 535

Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: 85 · Nominal diameter: 13 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Air filter connection thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: without choke · Nozzle thread: M4x0.7 (standard thread) · Nozzle size: 52 · Total length: 48 mm · Width: 50 mm
