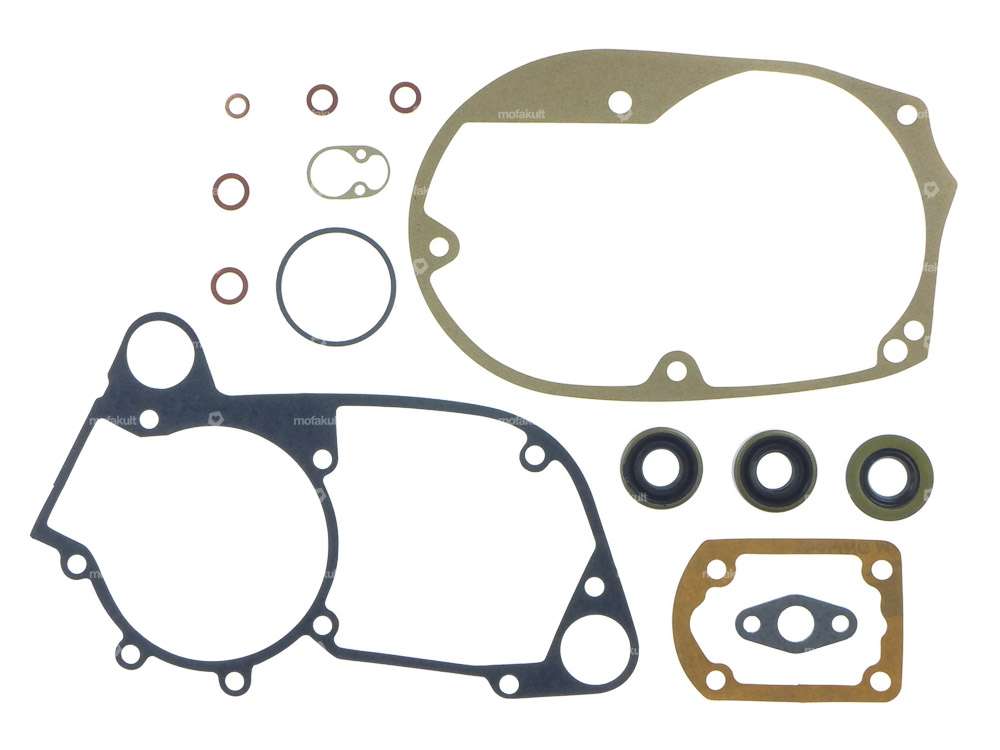

Gasket set incl. oil seals (also known under the trademarked brand name Simmerring®) for your moped / moped with a manual Sachs 503 engine.
Includes the following items:
1 pc. Center gasket
1 pc. Gearbox cover gasket
2 pcs. Sealing ring M8
2 pcs. Sealing ring M10
1 pc. Cylinder base gasket
1 pc. Inlet gasket 4 mm

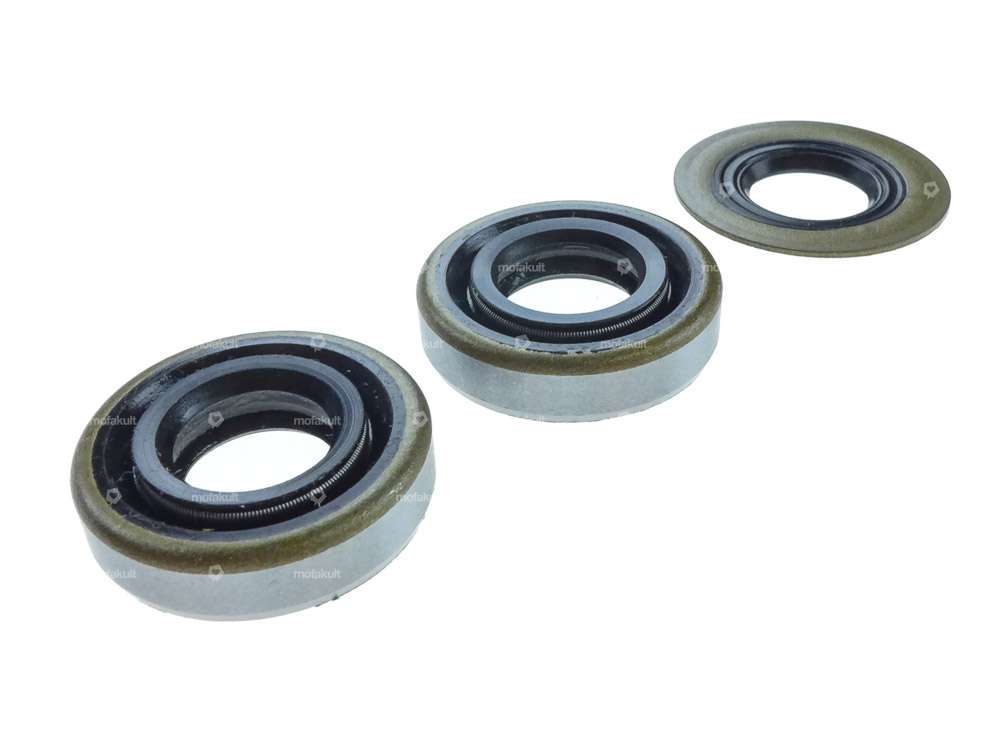

1 pc. Pinion shaft oil seal, 14.96/31.5/3.5
1 pc. Crankshaft oil seal, 15/30/7 DUO (double lip)
1 pc. Crankshaft oil seal, 15/30/7 AS
1 pc. Copper ring M6
1 pc. Carburetor cover gasket Bing
1 pc. Carburetor gasket round
Details
| Material | Sealing paper, Sealing carton, Aluminum, Fiber, Copper |
| Number of components | 14 pcs |
| Ø outlet inside | 13.3 mm |
| Hole spacing inlet | 32 mm |
| Hole pattern [mm] | 60 x 40 |
| Area of application | Standard |
Suitable for the following models
| Sachs | 503 - 2AL / 2BL |
