Pinasco «Slave» engine case with crankshaft (43 mm stroke / 12 mm KoBo) and double intake suitable for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.

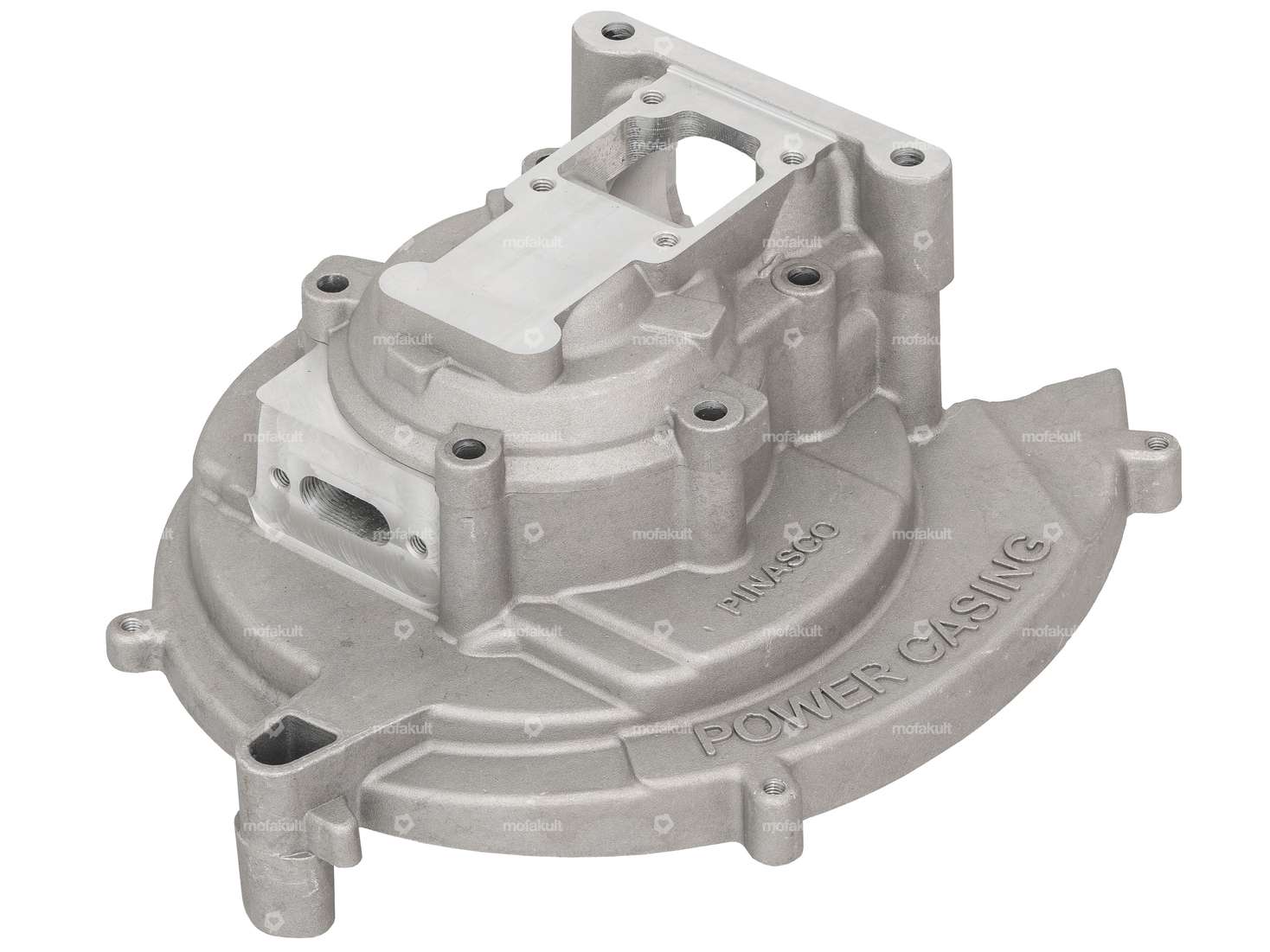

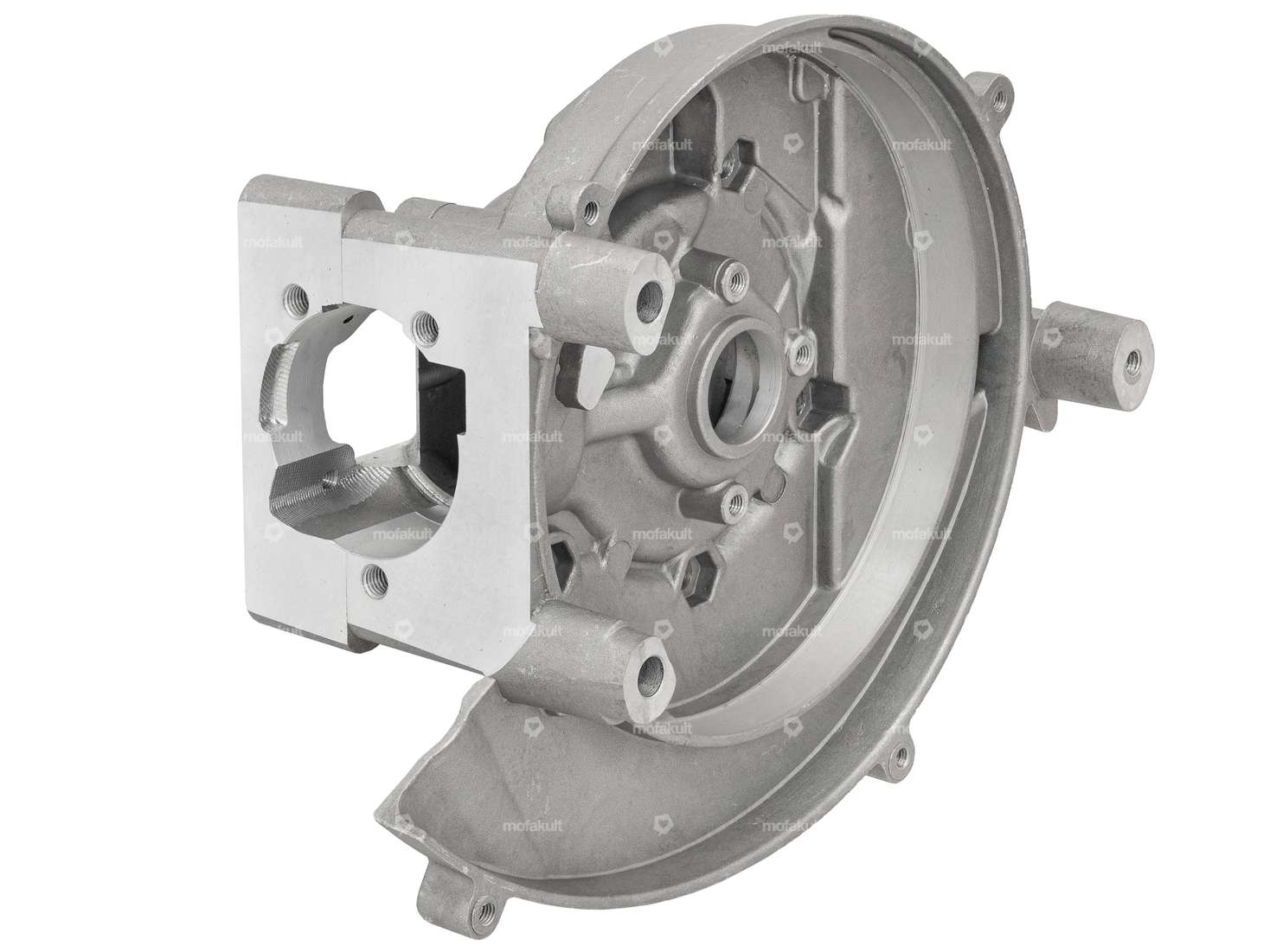

The Pinasco «Power Casing» engine housing is supplied with a specially developed crankshaft, which has a wide cheek for controlling the intake.
A standard 13 mm Dellorto SHA carburettor can be fitted to the rear of this housing, as well as any side-mounted carburettor with a 24 mm connection on the diaphragm system. The frame may have to be adapted if necessary.
This dual carburetor system can be used to tease the last horsepower out of your racing car.

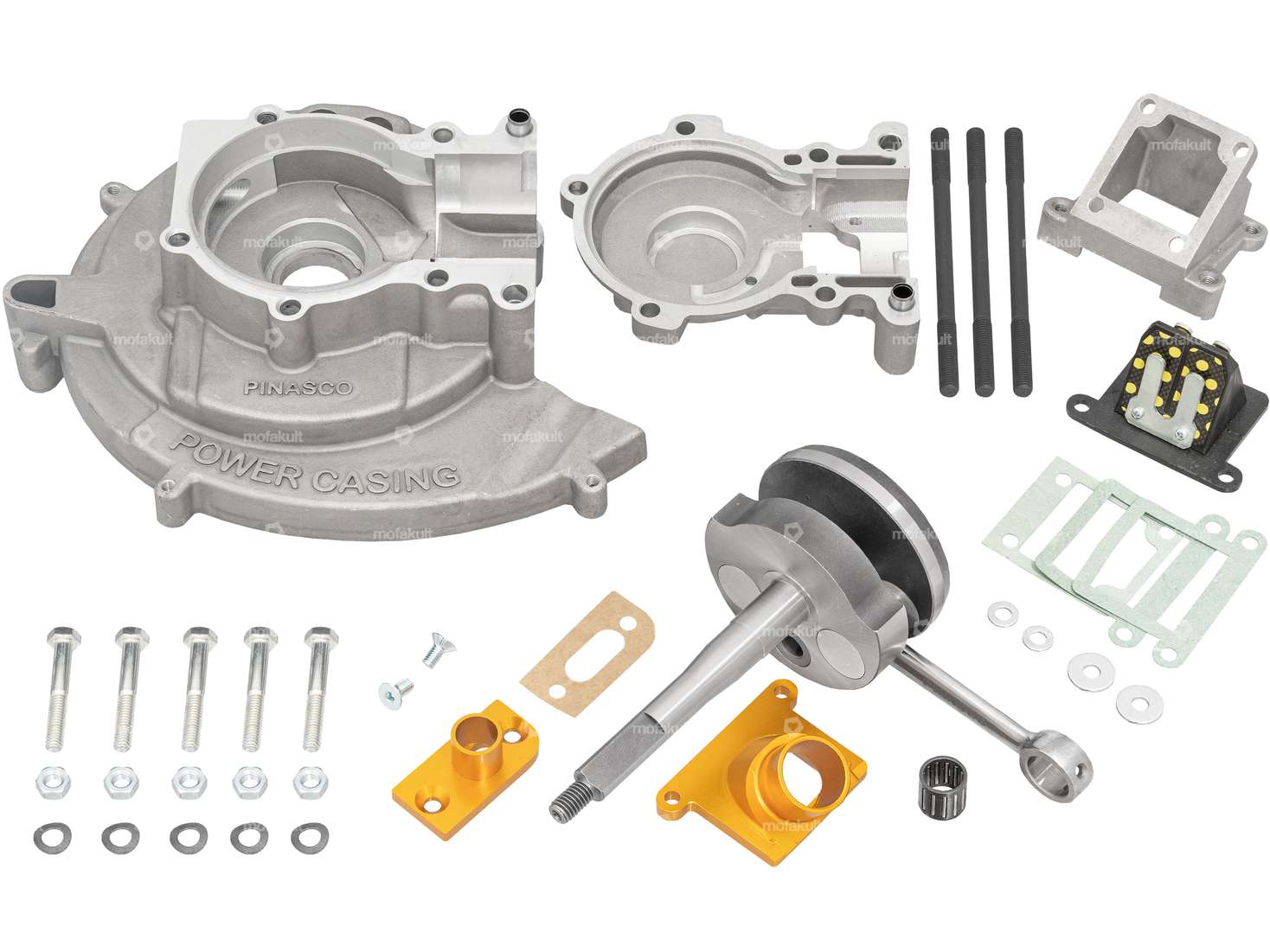

The following parts are included in the scope of delivery:
- Rear intake flange (connection diameter: 16 mm, &slash;-inside: 13 mm)
- Side diaphragm system incl. sealing plug for the 13 mm flange if this is not used.
- Mounting material for diaphragm flange (connection diameter: 24 mm, Ø inside: 20 mm)
- Cylinder stud bolt
- Engine housing (Ø for cylinder neck up to 50.7 mm)
- Engine housing screws

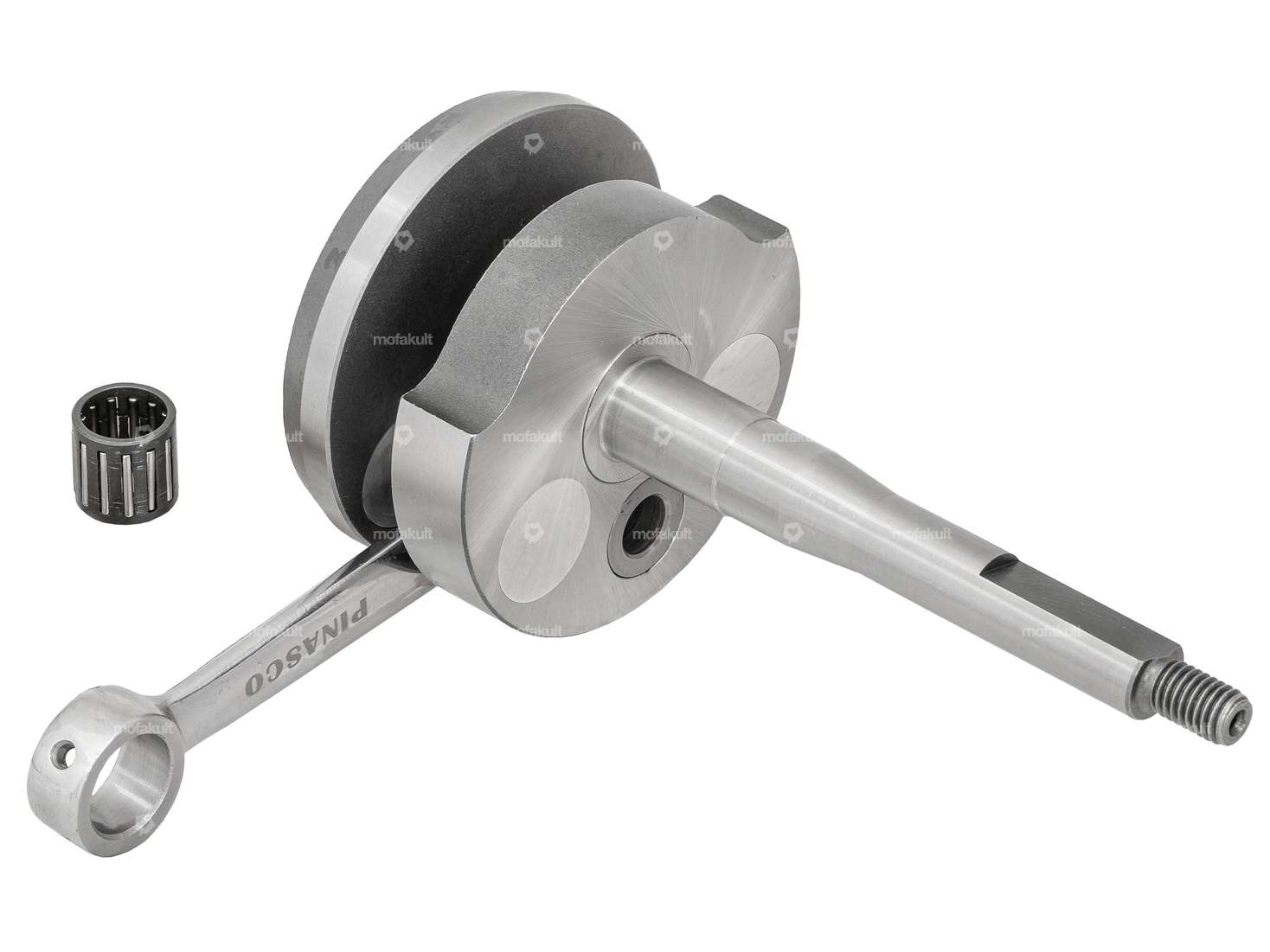

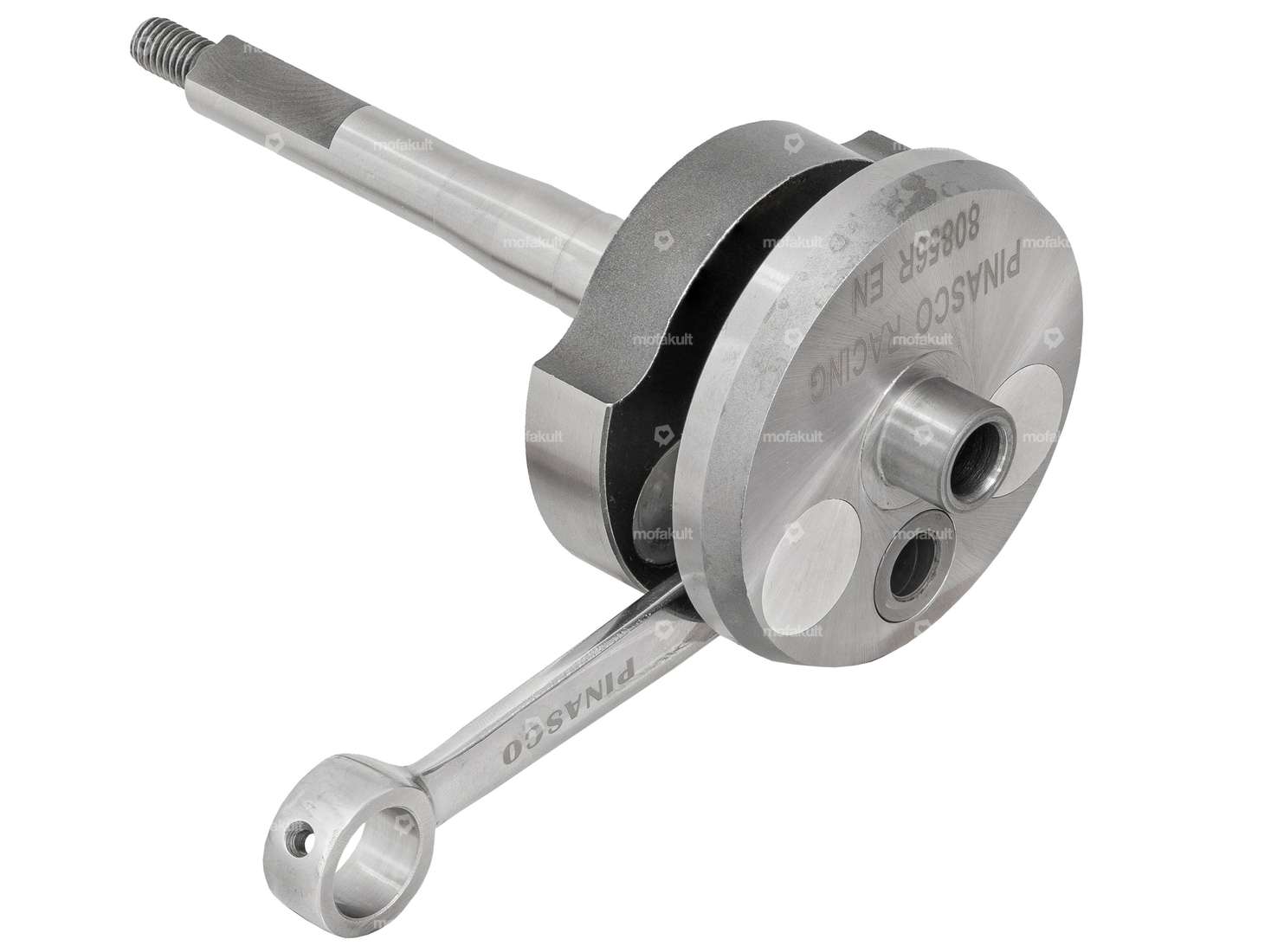

- Crankshaft Pinasco Competition with 43 mm stroke and 12 mm piston pin (axe 12)
- Installation instructions in English & Italian
No housing seal is supplied. Sealing compound is used for sealing.
We recommend using the 46 mm Pinasco cylinder kit for this racing gear. In addition, only electronic ignitions can be fitted to this housing.
If the engine is installed in a Piaggio Ciao frame, some material must be removed from the right-hand side of the housing and cylinder. This process is described in the assembly instructions.
Corresponding add-on parts such as sealant, racing kit, racing ignition etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Crankshaft stroke | 43 mm |
| Ignition type | Electronic |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Dell'Orto 19 mm PHBG CS carburetor hand choke
Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Nominal diameter: 19 mm · Carburetor type: PHBG CS · Total length: 82 mm · Color: black · Width: 70 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Height: 124 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Area of application: Racing · Area of application: Tuning · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45
EUR 140.90
Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Steel · Light coil voltage: 12 V · Weight: 804 g · Weight: 890 g · Performance: 90 W · Direction of rotation: right · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Ø cable: 7 mm · Area of application: High End · Area of application: Performance · Area of application: Racing · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 2 pcs
EUR 470.00
SKF 6202 C3 ball bearing 15/35/11
Ø inside: 15 mm · Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 35 mm · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Stock number: 6202 · Bearing type: Deep groove ball bearing · Width: 11 mm · Puch OEM number: 900.4.6202
EUR 11.60
Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C
Manufacturer: Elring · Material: Silicone · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Contents [ml]: 70 ml · Temperature resistance (min.): -60 - 315 °C · Gap dimension (max.): 2 mm · Area of application: Chemistry
EUR 23.40
EUR 334.29/l

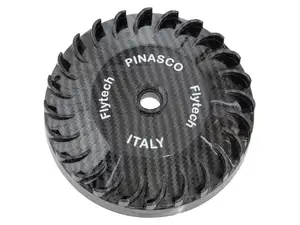

Pinasco flywheel carbon | Piaggio Ciao, SI, Bravo, Boxer
