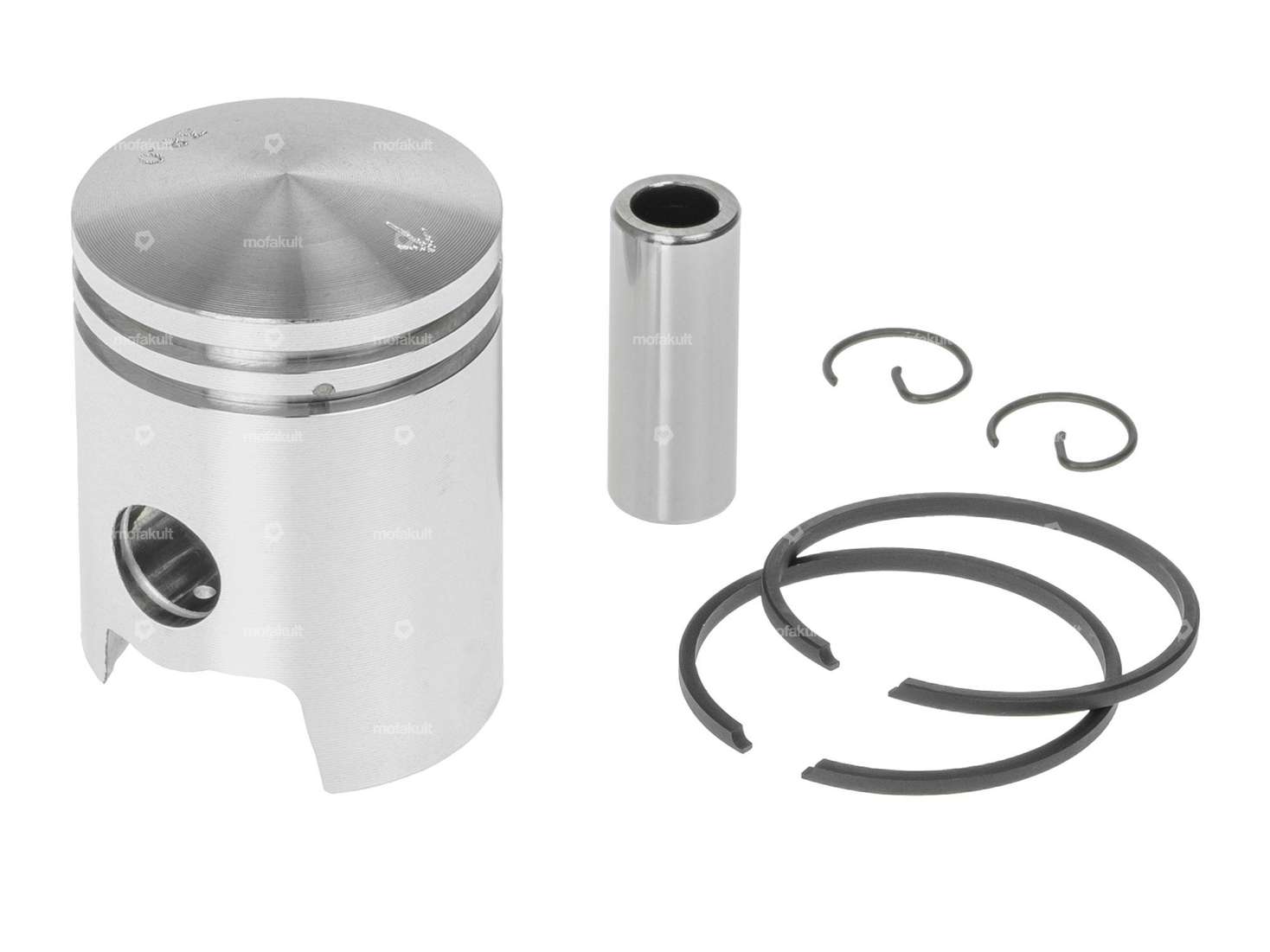

38 mm replacement piston / piston kit with two pieces of 2 mm rectangular piston rings with flank lock (FS) suitable for the windage-cooled cylinder of Sachs 50/3 & 50/4 mopeds / mopeds with square intake.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin retainers etc. can be found under accessories.
Original Sachs spare part number: 0290 058 025
Details
| Nominal diameter | 38 mm |
| Ø outside piston (A) | 37.94 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 2.95 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 73 g |
Suitable for the following models
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Accessories & related products

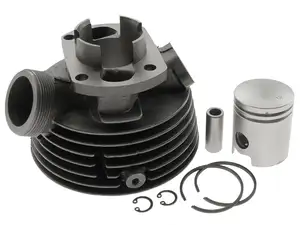

38 mm cylinder kit square inlet | Sachs 50/3, 50/4
