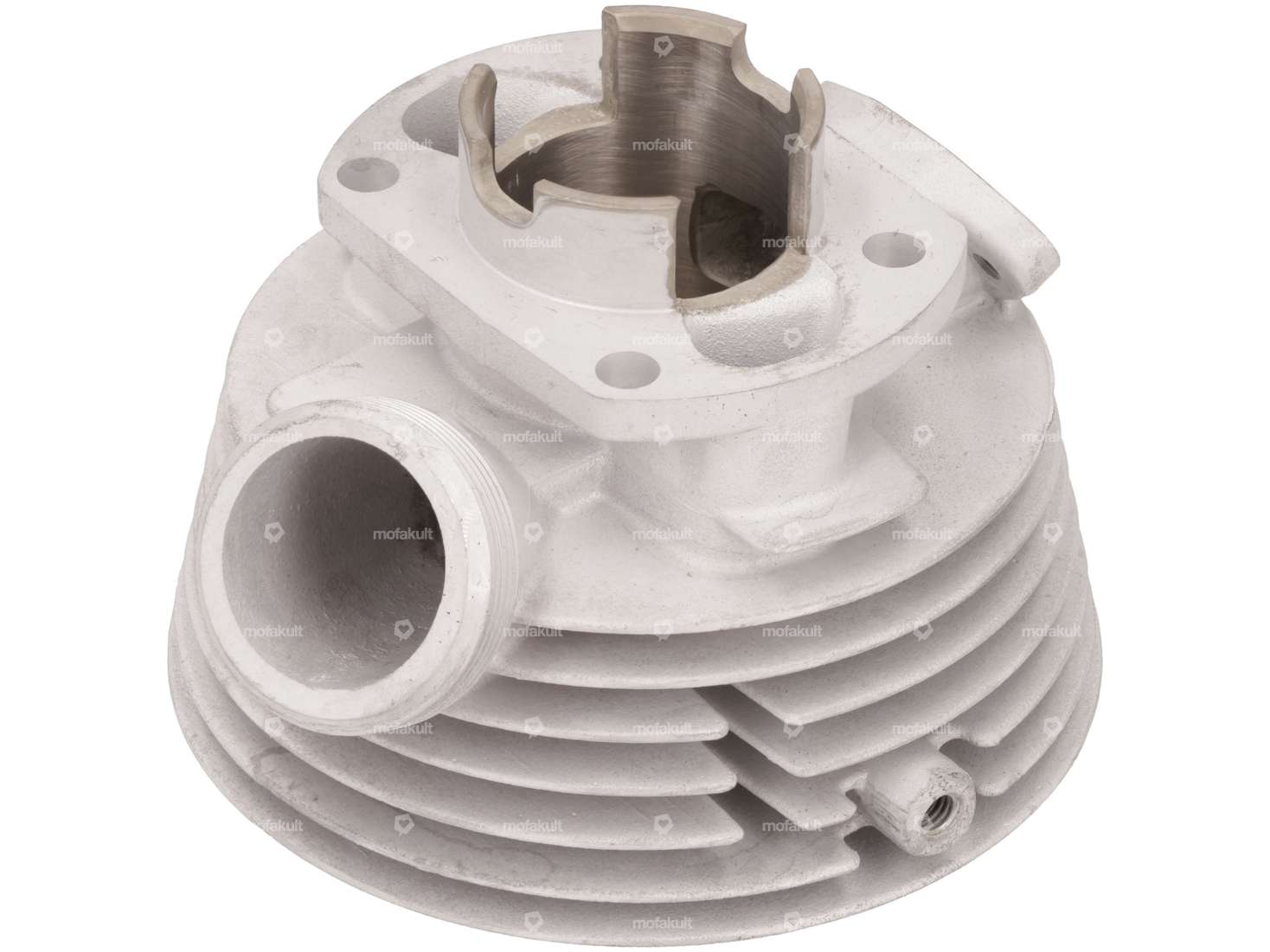

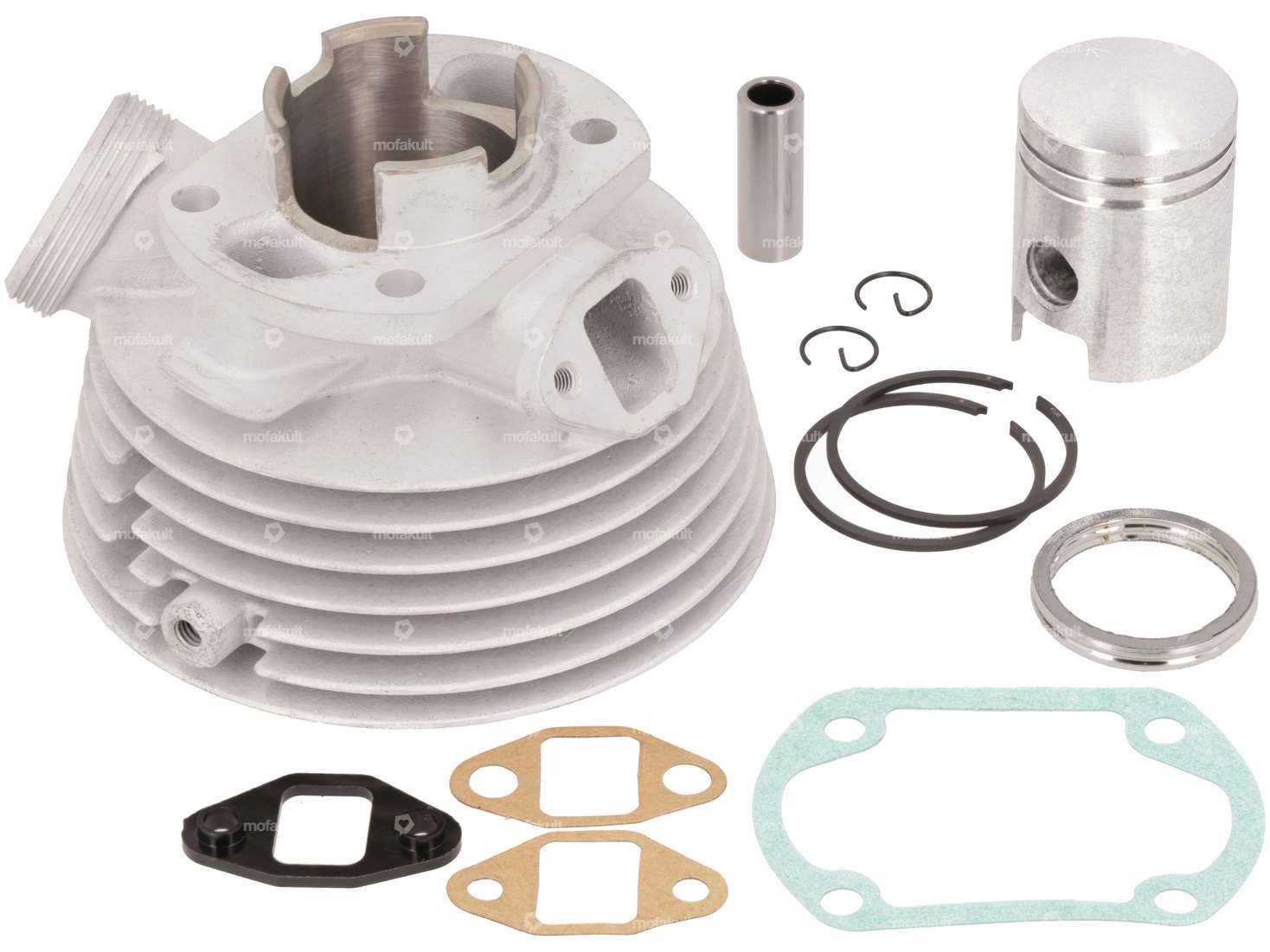

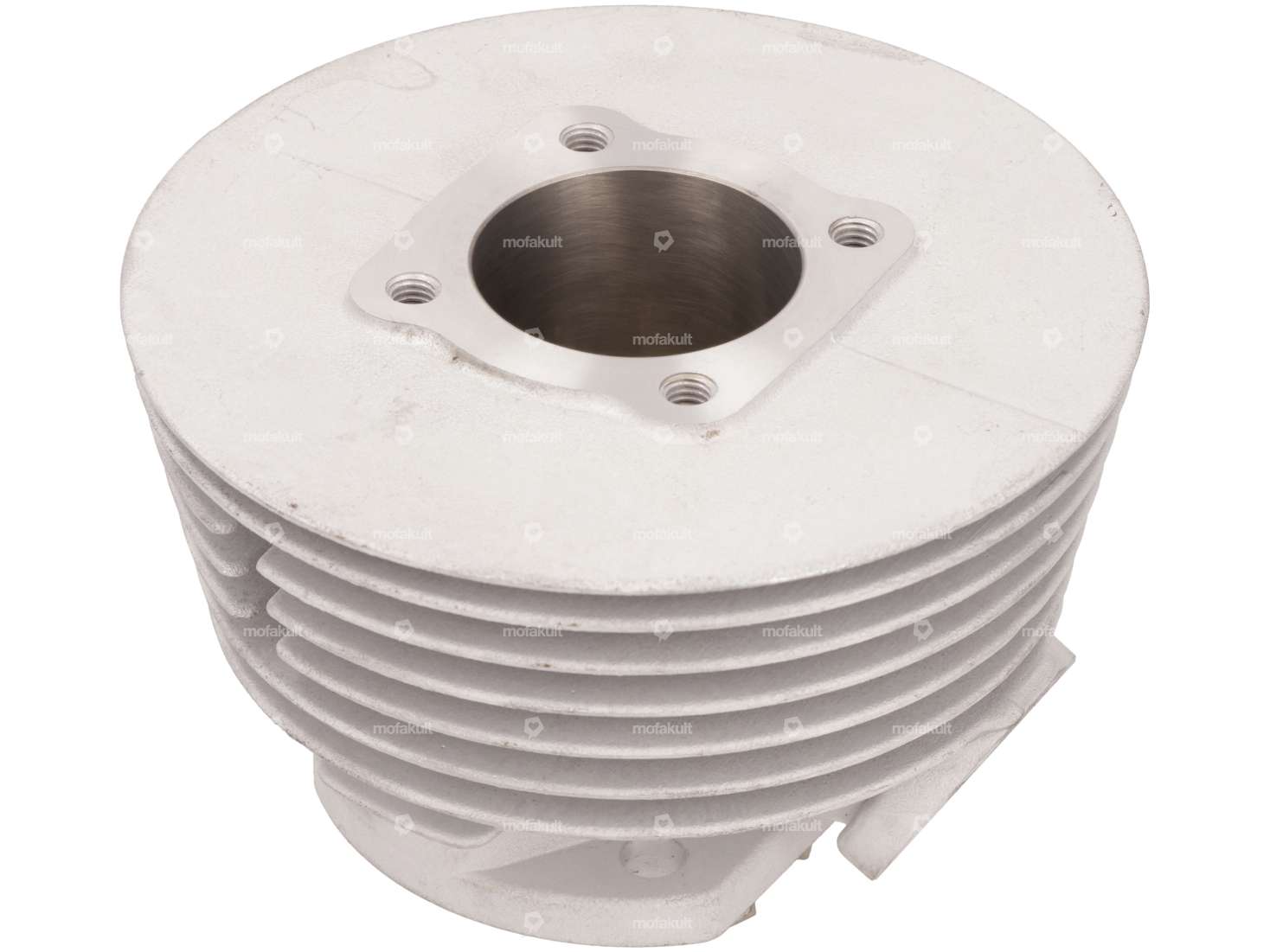

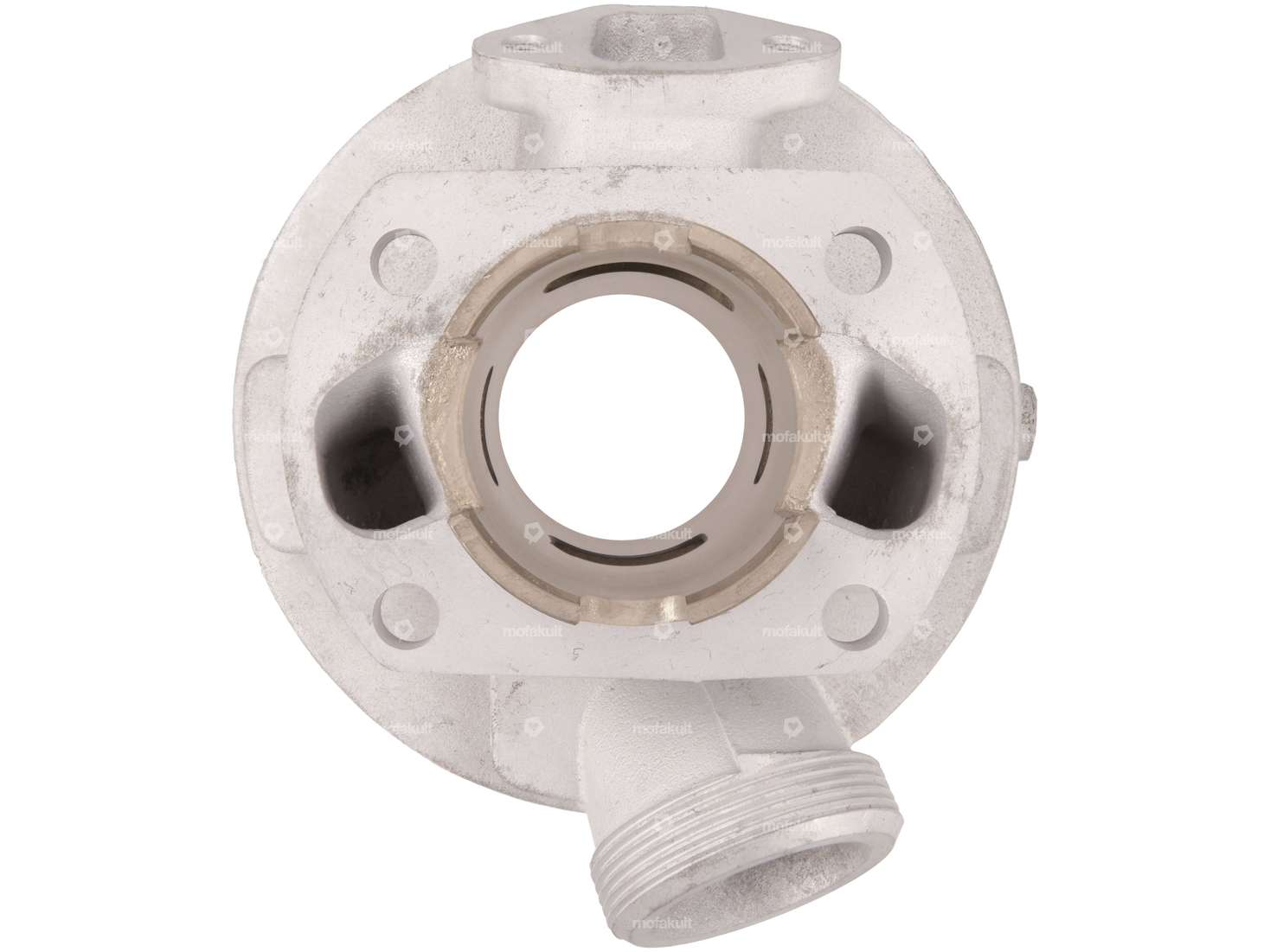

Complete 38 mm aluminum tuning cylinder with nickel-silicon carbide coating (also known under the trademarked brand name Nikasil®) and square inlet for small engines with Sachs 3- and 4-speed engines with foot shift. These engines were used on Hercules 50/3 LS 50/4 LKH, Gritzner etc.
The workmanship of the 50 cc racing cylinder is fine, but could do with some rework on some edges.
In order to be able to mount this racing kit on a Sachs 50/2 engine, various adjustments must be made.
Note: An exhaust nut with M40x1.5 mm thread is required.
The cylinder kit requires a 17 mm Bing SSB carburetor. You can find this and other add-on parts in the accessories section.
Details
| Nominal diameter | 38 mm |
| Manufacturer | Power1 |
| Material | Aluminum |
| Camouflaged | No |
| Area of application | Tuning |
| Surface | Nickel silicon carbide (known as Nikasil®) |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Ø cylinder neck | 44 mm |
| Inlet window | 16 x 18 |
| Thread inlet | M5x0.8 (standard thread) |
| Hole pattern [mm] | 51 x 40 / 37 x 37 |
| Number of fixing points | 4 pcs |
| Outlet type | Union nut |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Hole spacing inlet | 31 mm |
Suitable for the following models
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Accessories & related products

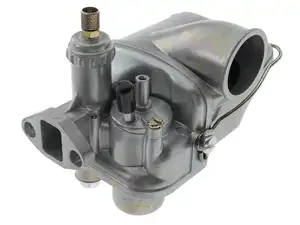

Carburetor 17 mm Bing SSB 1/17/69 reproduction
Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Total length: 116 mm · Carburetor type: SSB · Width: 86 mm · Nominal diameter: 17 mm · Height: 99 mm · Nozzle thread: MF7x0.75 (fine pitch thread) · Nozzle size: 76 · Ø fuel hose connection: 6.2 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: without choke · Mounting type: Stud bolts & nuts · Hole spacing inlet: 31 mm · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Area of application: Standard · Area of application: Tuning
EUR 93.00

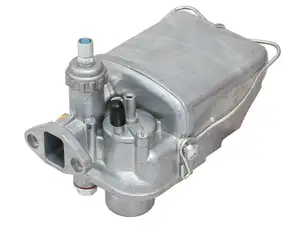

swiing carburetor 17 mm Bing SSB 1/17/69
Nominal diameter: 17 mm · Height: 100 mm · Manufacturer: swiing · Material: Aluminum · Camouflaged: No · Area of application: Standard · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Mounting type: Flange · Total length: 132 mm · Width: 85 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: without choke · Nozzle size: 76 · Hole spacing inlet: 31 mm
EUR 149.40

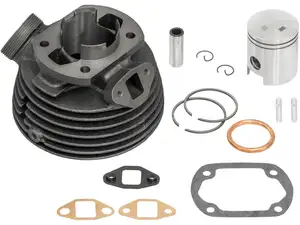

swiing 41 mm cylinder kit | Sachs 50/3, 50/4 LKH (square inlet)
