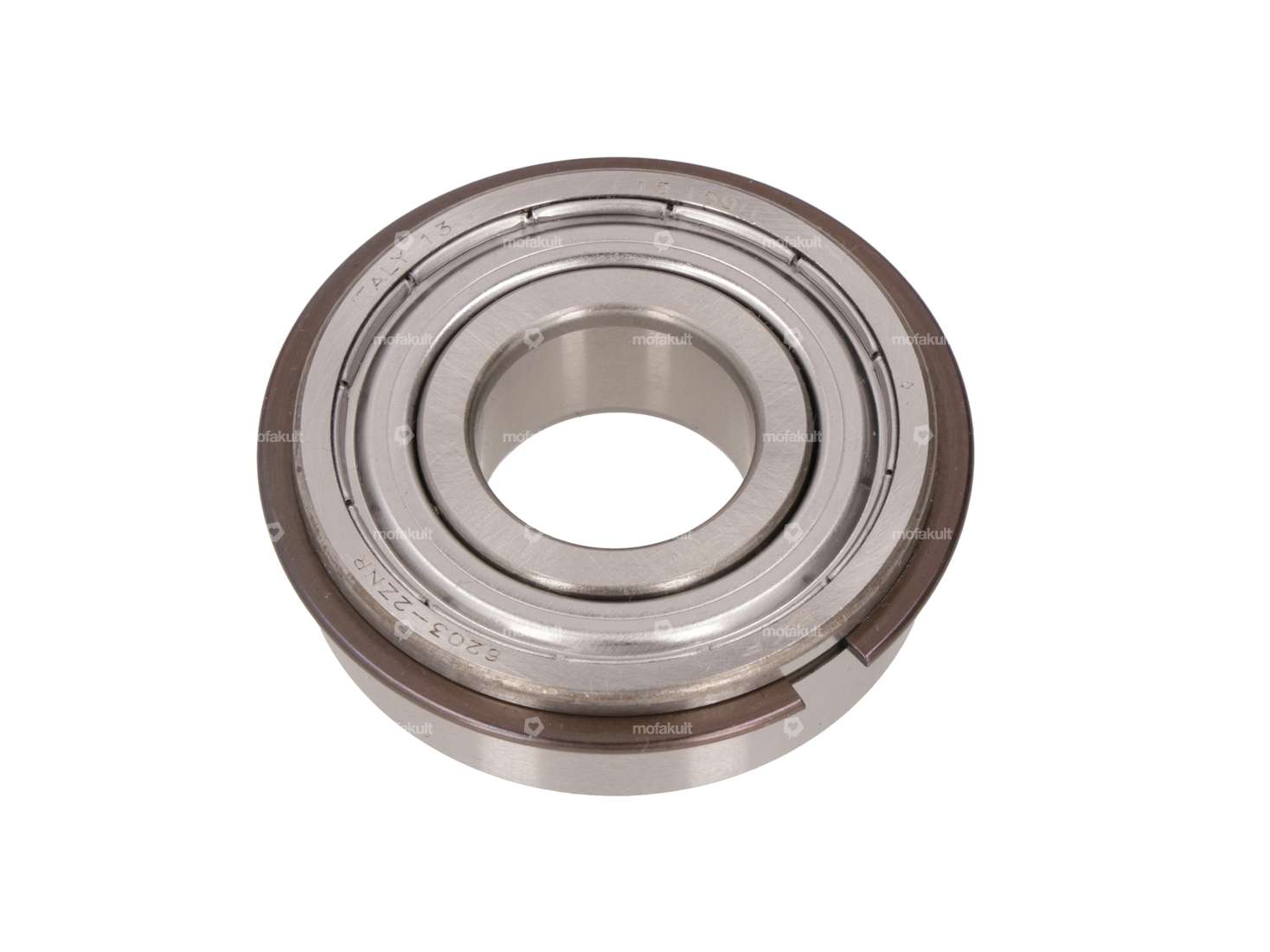

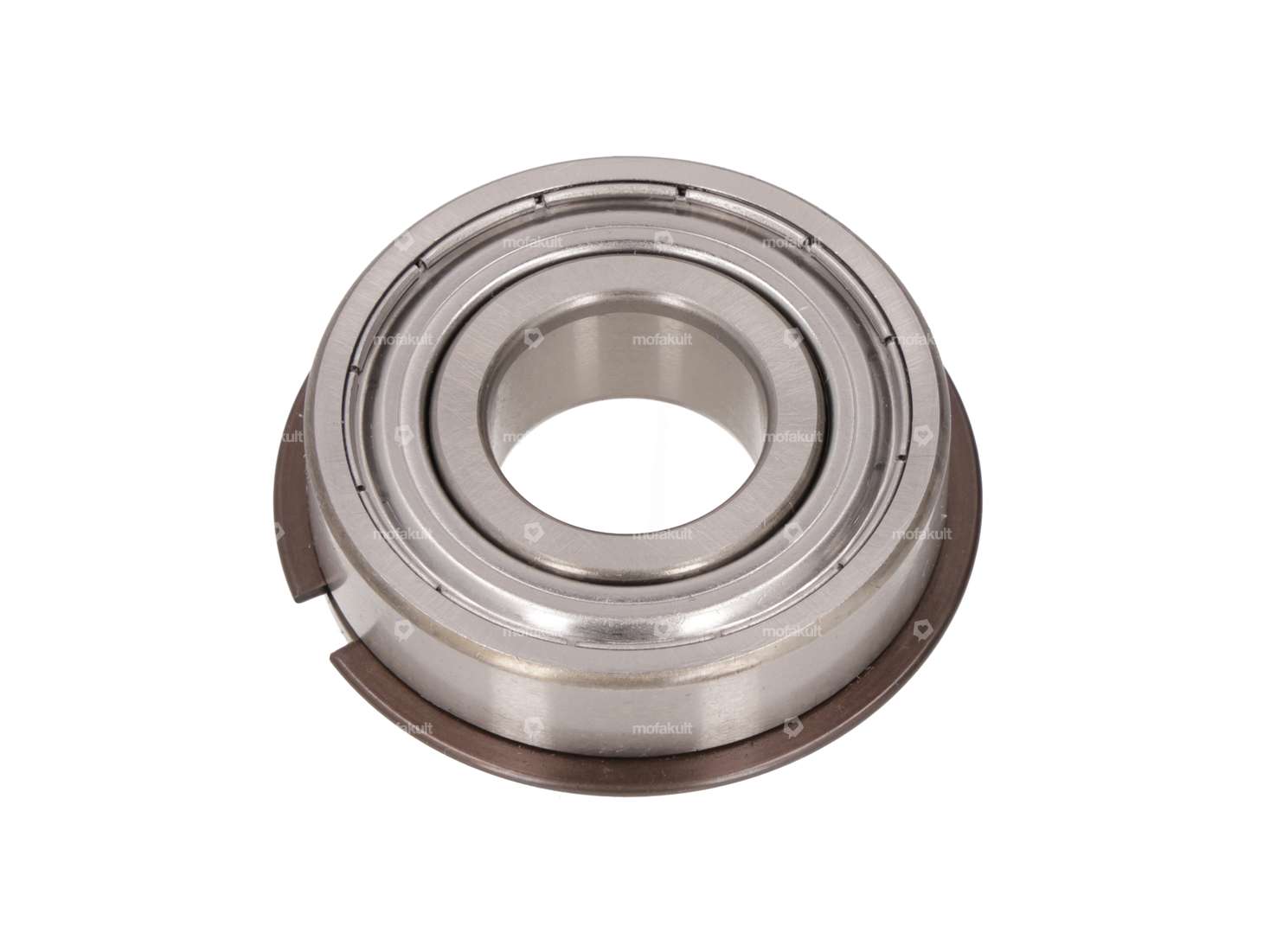

6203 2ZNR deep groove ball bearing 17x40x12 mm with outer ring for Puch mopeds / mopeds with E50 1-speed engine.
This special bearing is only installed if the crankshaft has a larger shaft seal ring seat on the clutch side. Colloquially, this is often known as the "old model".
The set includes the following fixed parts:
Manufacturer: SKF · Material: Steel · Area of application: Standard · Bearing type: Deep groove ball bearing · Stock number: 6203 · Bearing clearance: CN (standard) · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Ball bearing closed: Yes · Dust protection type: 2ZNR - Non-contact seal made of sheet steel on both sides · Bearing cage: Sheet steel cage
Details
| Bearing type | Deep groove ball bearing |
| Stock number | 6203 |
| Manufacturer | SKF |
| Dust protection type | 2ZNR - Non-contact seal made of sheet steel on both sides |
| Bearing clearance | CN (standard) |
| Groove ring | Yes |
| Material | Steel |
| Ø inside | 17 mm |
| Width | 12 mm |
| Area of application | Standard |
| Ø outside | 40 mm |
| Ball bearing closed | Yes |
| Puch OEM number | 900.6219 |
Suitable for the following models
| Puch | E50 |
