Spare parts catalog (Switzerland) for the Puch Maxi Plus 1-speed automatic moped / moped.

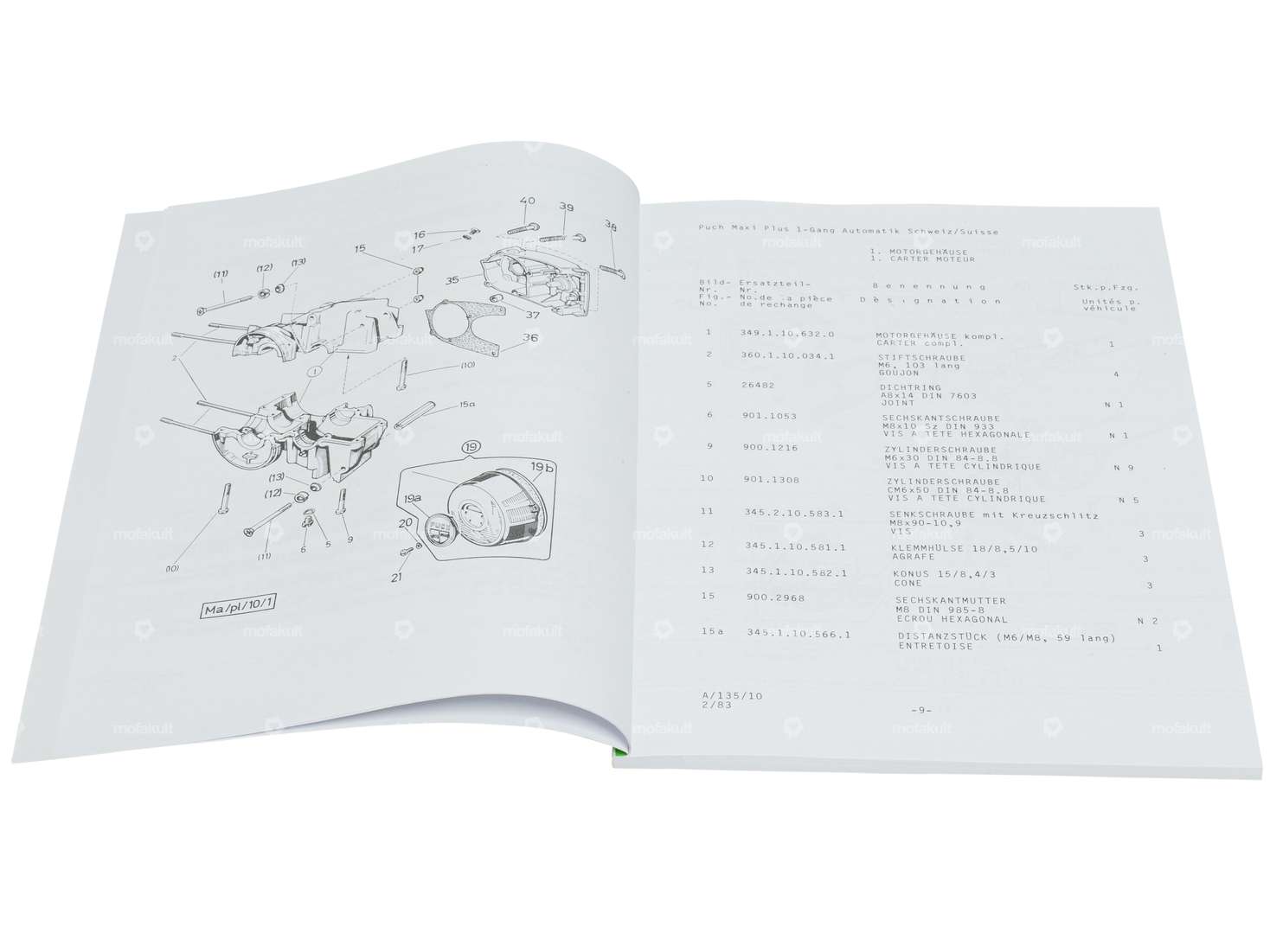

Each individual component is shown with the appropriate spare part number and the correct mounting location on the basis of many exploded drawings.
Format: A4 (210 x 297 mm)
Pages: 98
Language: German
High-quality facsimile (reproduction) of the original edition.
You can find more workshop manuals, operating and repair instructions in the accessories section.
Details
| Material | Paper |
| Width | 210 mm |
| Height | 297 mm |
| DIN format | A4 |
| Number of pages | 50 pcs |
| Language | German |
Suitable for the following models
| Puch | E50 |
